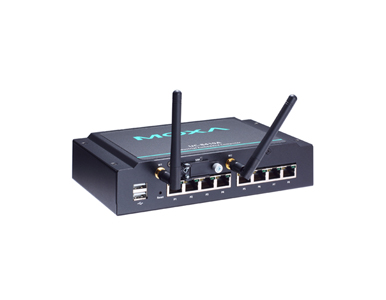

UC-8410A-LX - RISC dual-core embedded computer with 8 serial ports, 3 LANs, 4 DIOs, USB, mSATA, and Wireless-and-Security Enable by MOXA
|
|
|
- Freescale LS1021A Coretex-A7 1 GHz dual-core processor
- 512 MB DDR3 SDRAM
- 8 RS-232/422/485 serial ports
- 3 10/100/1000 Mbps Ethernet ports
- Wireless-enabled with PCIe mini slot
- 2 USB 2.0 hosts for mass storage devices
- DIN-rail or wall-mounting installation
- Robust, fanless design
- -40 to 75°C wide temperature model available
- Ready-to-run Debian ARM 8
|
|
|
The UC-8410A Series, UC-8410A-LX, embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts.
The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 1 GB SD card and 512 MB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage.
The UC-8410A comes with a variety of communication interaces, including serial ports, Ethernet ports, wireless communication slot, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications.
The UC-8410A Series comes with Linux Debian 8 pre-installed to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications, but at minimal cost and effort. In addition to the standard model, a -40 to 75°C wide temperature model is also available for harsh industrial environments.
Hardware Specifications |
• Computer |
CPU |
ARMv7 Cortex-A7 dual-core 1 GHz |
USB |
USB 2.0 hosts x 2, Type A connector |
DRAM |
512 MB DDR3 SDRAM onboard (up to 1 GB, by CV request) |
OS (pre-installed) |
Debian ARM 8 |
• Storage |
Main Storage |
1 GB SD card for OS |
Storage Expansion |
mSATA slot |
• Ethernet Interface |
LAN |
Auto-sensing 10/100/1000 Mbps ports (RJ45) x 3 |
Magnetic Isolation Protection |
1.5 kV built-in |
• Serial Interface |
Serial Standards |
RS-232/422/485 software-selectable ports (8-pin RJ45) x 8 |
Console Port |
RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
Baudrate |
50 bps to 115.2 kbps (supports nonstandard baudrates; see user’s manual for details) |
• Serial Signals |
RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
RS-485-2w |
Data+, Data-, GND |
• Digital Input |
Input Channels |
DI x 4 |
Input Voltage |
0 to 30 VDC |
Digital Input Levels for Dry Contacts |
• Logic level 0: Close to GND
• Logic level 1: Open |
Digital Input Levels for Wet Contacts |
• Logic level 0: +10 to +30 V (COM to DI)
• Logic level 1: +3 V max. |
Connector Type |
10-pin screw terminal block (4 points, COM, GND) |
Isolation |
3 kV optical isolation |
• Digital Output |
Output Channels |
4, sink type |
Output Current |
Max. 200 mA per channel |
On-State Voltage |
24 VDC nominal, open-drain to 30 V |
Connector Type |
10-pin screw terminal block (4 points, GND) |
Isolation |
3 kV optical isolation |
• LEDs |
System |
Power, Ready, Storage, Diagnostic, Wireless signal strength |
LAN |
100M/Link/Act x 3, 1000M/Link/Act x 3 (on connector) |
Serial |
TxD x 8, RxD x 8 (on connector) |
Reset Button |
Supports "Reset to Factory Default and System diagnostics" |
• Physical Characteristics |
Housing |
SECC sheet metal (1 mm) |
Weight |
1 kg (2.21 lb) |
Dimensions |
200 x 120 x 48.6 mm (7.87 x 4.72 x 1.91 in) |
Mounting |
DIN-rail, wall |
• Environmental Limits |
Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature |
Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Anti-Vibration |
2 Grms @ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per axis |
Anti-Shock |
20 g @ IEC-68-2-27, half sine wave, 11 ms |
• Power Requirements |
Input Voltage |
12 to 48 VDC (3-pin terminal block) |
Input Current |
12 to 48 VDC, 1.57 to 0.42 A |
Power Consumption |
19 W |
• Standards and Certifications |
Safety |
UL 60950-1 |
EMC |
CISPR 32, FCC Part 15B Class A
EN 55032/24
IEC 61000-4-2 ESD: Contact 4 kV; Air 8 kV
IEC 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power 0.5 kV; Signal 0.5 kV
IEC 61000-4-5 Surge: Power 0.5 kV; Signal 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61 |
• Reliability |
Alert Tools |
Built-in buzzer and RTC (real-time clock) |
Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
• Warranty |
Warranty Period |
5 years |
Details |
See www.moxa.com/warranty |
Note |
The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adapter and cables. |
|
Software Specifications |
• Linux |
OS |
Debian ARM 8 |
Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
Terminal Server (SSH) |
SSH allows remote logins to a secure encrypted console from any connected network |
Kernel |
GNU/Linux 3.12
System Shell: DASH, BASH
Text Editor: vim, nano |
File System |
Ext2, Ext3, Ext4 |
Internet Protocol Suite |
TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SSH, PPP, SFTP, RSYNC, SSL |
Programming Language Support |
PHP, Perl, Python |
Internet Security |
OpenVPN, iptables |
Cryptographic Hardware Accelerators |
AES, SHA, OpenSSL |
Self Diagnosis |
Check status of system and hardware component via software method |
Linux Board Support Packages (BSP) |
GCC C/C++ cross development tool chainBootloader/ Kernel/ filesystem |
Cellular Networking |
Allows Unix machines to connect to the Internpppd to connect to the Internet. Connect talcomm MSM Interface): Glib-based library for talking to WWAN modems and devices that speak the Qualcomm MSM Interface (QMI) protocol. |
Watchdog |
Features a hardware function to trigger system reset in a user specified time interval (Linux standard provided) |
Application Development Software |
• Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server |
Software Protection |
Encryption tool for user executable files (based on patented Moxa technology) |
|
|
