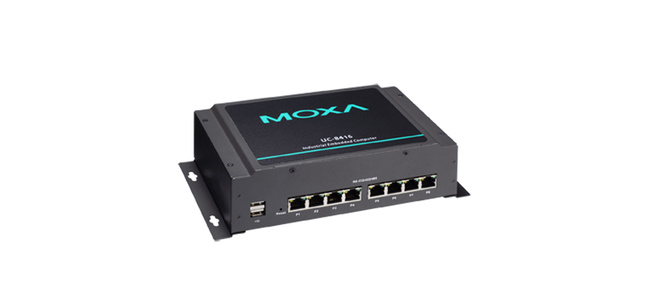

Moxa UC-8416-LX - RISC-based Ready-to-Run Embedded Computer with IXP435, 8 Serial Ports, 3 LAN, 8 Switch Ports, 4 DIO, CompactFl
by MOXA
|
|
|
|
- Intel XScale IXP435 533 MHz processor
- 256 MB DDR2 SDRAM and 16 MB Flash ROM onboard
- 32 MB NAND Flash for data storage
- 256 KB battery backup SRAM
- 8 RS-232/422/485 serial ports
- 8 Ethernet switch ports
- 4 digital input and 4 digital output channels
- 3 10/100 Mbps Ethernet ports
2 USB 2.0 hosts for mass storage devices
CompactFlash socket for storage expansion
Ready-to-run Linux platform
DIN-Rail or wall mounting installation
Robust, fanless design
-40 to 75°C wide temperature model available
|
|
|
The UC-8416 embedded computer comes with 8 RS-232/422/485 serial ports, 3 Ethernet ports, 8 Ethernet switch ports, 4 digital input channels, 4 digital output channels, a CompactFlash socket, and 2 USB 2.0 hosts.
The computer uses the Intel XScale IXP435 533 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate too much heat. The built-in 16 MB NOR Flash ROM and 256 MB SDRAM give you enough memory to run your application software directly on the UC-8410, and the 32 MB NAND Flash can be used to provide additional data storage. Moreover, the 256 KB SRAM offers a better data retention mechanism for avoiding data loss.
The UC-8416 computer comes with 8 RS-232/422/485 serial ports, digital I/O, and has 3 LAN ports and 8 Ethernet switch ports, making it ideal as a communication platform for industrial applications that require network redundancy.
The UC-8416 comes with the Linux 2.6 platform pre-installed to provide an open software operating system for software program development. Software written for a desktop PC can be easily ported to the UC-8416 platform by using a common compiler, without needing to modify the code. This makes the UC-8416 an optimal solution for use with industrial applications, but with minimal cost and effort.
In addition to the standard model, the UC-8416 also comes in a -40 to 75°C wide temperature model for harsh industrial environments.
| Hardware Specifications |
| • Computer |
| CPU |
Intel XScale IXP435, 533 MHz |
| OS (pre-installed) |
Linux |
| DRAM |
256 MB DDR2 SDRAM onboard (512 MB max.) |
| SRAM |
256 KB, battery backup |
| Flash |
• 16 MB NOR Flash onboard to store OS (supports up to 32 MB)
• 32 MB NAND Flash onboard to store data |
| Expansion Bus |
PCI/104 onboard |
| USB |
USB 2.0 compliant hosts x 2, type A connector |
| • Storage |
| Storage Expansion |
CompactFlash socket |
| • Ethernet Interface |
| LAN |
3 auto-sensing 10/100 Mbps ports (RJ45) |
| Switch Port |
8 10/100 Mbps unmaaged ports (RJ45) |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Serial Standards |
8 RS-232/422/485 ports, software-selectable (8-pin RJ45) |
| Console Port |
RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 Kbps (supports non-standard baudrates; see user’s manual for details) |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Digital Input |
| Input Channels |
4, source type |
| Input Voltage |
0 to 30 VDC |
| Digital Input Levels for Dry Contacts |
• Logic level 0: Close to GND
• Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
• Logic level 0: +3V max.
• Logic level 1: +10V to +30V (COM to DI) |
| Connector Type |
10-pin screw terminal block (4 points, COM, GND) |
| Isolation |
3 kV optical isolation |
| • Digital Output |
| Output Channels |
4, sink type |
| Output Current |
Max. 200 mA per channel |
| On-state Voltage |
24 VDC nominal, open collector to 30 V |
| Connector Type |
10-pin screw terminal block (4 points, GND) |
| Isolation |
3 kV optical isolation |
| • LEDs |
| System |
Power, Ready, Storage, Battery for SRAM |
| LAN |
10M/Link x 2, 100M/Link x 2 (on connector) |
| Serial |
TxD x 8, RxD x 8 |
| Reset Button |
Supports “Reset to Factory Default” |
| • Physical Characteristics |
| Housing |
SECC sheet metal (1 mm) |
| Weight |
1 kg |
| Dimensions |
• UC-8410: 200 x 37 x 120 mm (7.87 x 1.46 x 4.72 in) |
| Mounting |
DIN-Rail, wall |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-vibration |
2 g rms @ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per axis |
| Anti-shock |
20 g @ IEC-68-2-27, half sine wave, 11 ms |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC (3-pin terminal block) |
| Power Consumption |
15 W
• 310 mA @ 48 VDC
• 625 mA @ 24 VDC
• 1350 mA @ 12 VDC |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1, CCC (GB9254, GB17625.1) |
| EMC |
EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class B |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
156,942 hrs |
| • Warranty |
| Warranty Period |
5 years |
| Note |
The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In particular, the wide temperature specification does not apply to accessories such as the power adaptor and cables. |
| Software Specifications |
| • Linux |
| OS |
Linux 3.8.13 |
| File System |
JFFS2, NFS, Ext2, Ext3 |
| Internet Protocol Suite |
TCP, UDP, IPv4, IPv6, SNMPv1, ICMP, ARP, HTTP, CHAP, PAP, DHCP, NTP, NFS, SMTP, Telnet, FTP, TFTP, PPP, PPPoE |
| Internet Security |
OpenVPN, iptables firewall |
| Web Server (Apache) |
Allows you to create and manage web sites; supports PHP and XML |
| Terminal Server (SSH) |
Provides secure encrypted communications between two un-trusted hosts over an insecure network |
| Dial-up Networking |
PPP Daemon for Linux that allows Unix machines to connect to the Internet through dialup lines, using the PPP protocol, as a PPP server or client. Works with ‘chat’, ‘dip’, and ‘diald’, among (many) others. Supports IP, TCP, UDP, and (for Linux) IPX (Novell). |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval (Moxa API provided) |
| Application Development Software |
• Moxa API Library (Watchdog timer, Moxa serial I/O control, Moxa DI/DO API)
• GNU C/C++ cross-compiler
• GNU C library
• GDB source-level debugging server |
| Software Protection |
Encryption tool for user executable files (based on patented Moxa technology) |
| • Windows Embedded CE 6.0 |
| OS |
Windows Embedded CE 6.0 |
| File System |
FAT |
| Internet Protocol Suite |
TCP, UDP, IPv4, IPv6, SNMPv2, ICMP, IGMP, ARP, HTTP, CHAP, PAP, SSL, DHCP, SNTP, SMTP, Telnet, FTP, PPP |
| Web Server (WinCE IIS) |
Supports ASP, ISAPI Secure Socket Layer (SSL 2/3) and Transport Layer Security (TLS/SSL 3.1) public key-based protocols, and Web Administration ISAPI Extensions |
| Dial-up Networking |
Supports RAS client API and PPP, Extensible Authentication Protocol (EAP), and RAS scripting |
| Watchdog |
Features a hardware function to trigger system reset in a user specified time interval. (Moxa API provided) |
| Application Development Software |
• Moxa WinCE 6.0 SDK
• Moxa API Library
• C Libraries and Run-times
• Component Services (COM and DCOM)
• Microsoft® .NET Compact Framework 3.5
• XML, including DOM, XQL, XPATH, XSLT, SAX, SAX2
• SOAP Toolkit Client
• Winsock 2.2 |
|
|
|
|
