Moxa UC-8630A-T - Arm Cortex-A72 dual-core 1.5 GHz 64-bit box computers with rich set of interfaces, M.2 M key, M.2 E key and mP
by MOXA
|
|
|
|
- CPU: Arm Cortex-A72 dual-core 1.5 GHz processor
- 4 auto-sensing 10/100/1000 Mbps Ethernet ports
- 8 RS-232/422/485 serial ports
- 2 CAN ports (CAN 2.0A/CAN 2.0B) with 3 kV isolation protection
- M.2 M key SSD slot and Micro SD socket for storage expansion
- Supports cellular and Wi-Fi 6E via an expansion slot
- Moxa Industrial Linux with 10-year superior long-term support
- EN 18031-1 compliant wireless cybersecurity
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- Input current: 1.58A @12V
- Power consumption: 17W
- MTBF Time: 1,023,992 hrs
- -40 to 70°C operating temperature range
|
|
|

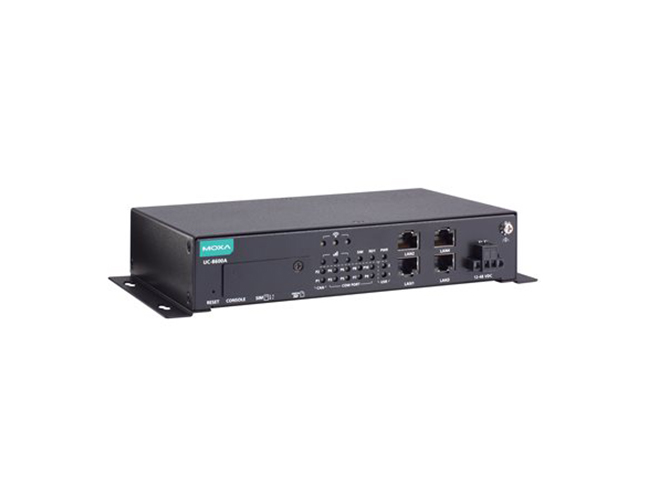

Moxa UC-8630A-T
The UC-8600A Series Arm-based box-type computing platform is designed for embedded data-acquisition and edge-computing applications.
The UC-8600A comes with four 10/100/1000 Ethernet ports, eight RS-232/422/485 serial ports, four DI/DO channels, two CAN ports, enabling robust connectivity for a wide variety of field devices. The UC-8600A also supports storage expansion via an M.2 M key slot for SSD and a Micro SD card slot. In addition, a wireless expansion slot that supports Wi-Fi 6E and cellular modules enables reliable wireless communication for remote applications. The versatile communication and expansion capabilities of the UC-8600A Series facilitates efficient deployment in diverse industrial environments.
Specifications
- CPU: Arm Cortex-A72 dual-core 1.5Hz
- DRAM: 4 GB LPDDR4 SDRAM
- Storage Pre-installed: 32 GB eMMC
- Operating System: MIL4 Standard (default) CTO: order MIL4 Secure via UC-8600A (CTO)
- Ethernet Ports: auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x4
- Serial channels: RS-232/422/485 ports x 8 (software-selectable, terminal-block connector)
- Digital Input: DIs x4
- Digital output: DOs x4
- CAN ports: CAN 2.0 A/B x 2 (3-pin terminal block)
- USB 3.0: USB 3.0 hosts x 2, type-A connectors
- Expansion slots: mPCIe slots x 1 (for LTE)
- M.2.E Key slot: reserved for Wi-Fi 6
- Cellular Antenna connector: SMA x 2
- Number of SIMs: 2
- SIM format: Nano
- GPS Antenna connector: SMA x 1
- Console port: RS-232 (TxD, RxD, GND), 3-pin header output (115200, n, 8, 1)
- Buttons: programmable button
- TPM: TPM v2.0
- Magnetic Isolation protection: 1.5 kV (built-in)
- Input current: 1.58A @12V
- Input voltage: 12-48VDC
- Power consumption: 17W
- Housing: metal
- IP Rating: IP30
- Operating temperature: -40~70ºC
|
|
|
|
