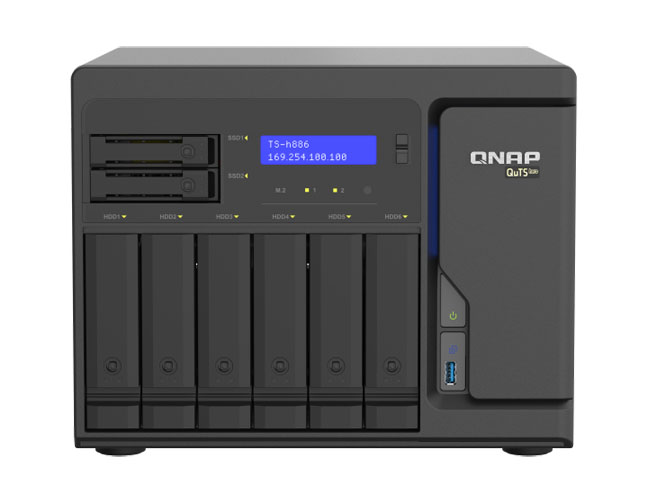

TS-h886-D1622-16G-US - 8-Bay QuTS hero NAS, Xeon D-1622 2.6GHz, 16GB ECC RAM, 4 x 2.5GbE, PCIe expansion slot x2, built-in M.2 N
by QNAP
|
|
|
|
- Four 2.5GbE ports accelerate file sharing across teams and devices, virtual machine applications or multimedia transmission.
- DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
- Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s bandwidth) enable SSD caching to boost random read/write performance.
- Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or entry-level graphics cards to increase application performance.
- Scalable storage supporting virtual machines, containerized apps, centralized storage, backup, sharing, and disaster recovery.
- QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
| Mfg SKU # : | TS-h886-D1622-16G-US |
|
|
|
Delivering enterprise performance at SMB prices, the TS-h886-D1622-16G-US features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.
TS-h886-D1622-16G-US
|
| CPU |
Intel® Xeon® D-1622 quad-core 2.6 GHz processor (burst up to 3.2 GHz) |
| CPU Architecture |
64-bit x86 |
| Floating Point Unit |
|
| Encryption Engine |
(AES-NI) |
| Hardware-accelerated Transcoding |
|
| System Memory |
16 GB UDIMM DDR4 ECC (2 x 8 GB) |
| Maximum Memory |
128 GB (4 x 32 GB) |
| Memory Slot |
4 x Long-DIMM DDR4 For dual-DIMM configurations, you must use a pair of identical DDR4 modules. |
| Flash Memory |
5GB (Dual boot OS protection) |
| Drive Bay |
6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| M.2 SSD Slot |
2 x M.2 2280/22110 NVMe Gen3 x4 slots |
| SSD Cache Acceleration Support |
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
4 |
| Jumbo Frame |
|
| PCIe Slot |
2
Slot 1: PCIe Gen3 x8
Slot 2: PCIe Gen3 x8 |
| USB 3.2 Gen 1 port |
3 |
| Form Factor |
Tower |
| LED Indicators |
System status, 2.5” SSD, M.2 SSD, 3.5” HDD |
| Buttons |
Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) |
231.9 × 292.9 × 319.8 mm |
| Weight (Net) |
8.5 kg |
| Weight (Gross) |
10.11 kg |
| Operating temperature |
0 - 35°C (32°F - 95°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
Input: 100-240V~, 3-1.5A, 60-50Hz; Output 250W |
| Power Consumption: Operating Mode, Typical |
75.79 W Tested with drives fully populated. |
| Fan |
System fan: 2 x 80mm
CPU fan: 1 x 97mm |
| Sound Level |
20.4 db(A) |
| System Warning |
Buzzer |
| Kensington Security Slot |
|
| Max. Number of Concurrent Connections (CIFS) |
1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
