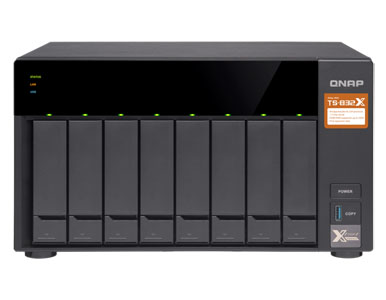

QNAP TS-832X-2G-US - *Discontinued* - AL324 1.7GHz Quad-core, 2GB DDR4 RAM, 1 x SODIMM, 2 x PCIe slot, Dual 10GbE SFP+ ports, SM
by QNAP
|
|
|
|
- Dual 10GbE SFP+ ports for accelerating virtualization and massive file sharing.
- PCIe expandability allows for 10GbE adapters, QM2 cards, USB 3.2 Gen 2 cards, or wireless network cards.
- Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
- Supports LXC and Docker® containers for rapidly deploying application services across platforms including the cloud, servers, and PCs.
- Secure private cloud supporting centralized storage, backup, sharing, disaster recovery, and storage capacity expansion.
| Mfg SKU # : | TS-832X-2G-US |
|
|
|
The powerful 8-bay, quad-core TS-832X-2G-US includes two 10GbE SFP+ ports to fully support 10GbE high-speed networks at a budget price with maximized ROI. It is also an ARM-based NAS that supports Qtier™ technology for efficient auto-tiered storage. The PCIe slots extend greater application potential, for example, by installing QNAP’s new PCIe wireless network card QWA-AC2600 the TS-832X is transformed into a convenient wireless base station that allows devices to directly connect to the NAS for easy access to its services and Internet connection.
|
| CPU |
AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor |
| CPU Architecture |
64-bit ARM |
| Floating Point Unit |
|
| Encryption Engine |
|
| System Memory |
2 GB SODIMM DDR4(1 x 2 GB) |
| Maximum Memory |
16 GB (1 x 16 GB) |
| Memory Slot |
1 x SO-DIMM DDR4 |
| Flash Memory |
512 MB (Dual boot OS protection) |
| Drive Bay |
8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable |
|
| M.2 SSD Slot |
Optional via a PCIe adapter |
| SSD Cache Acceleration Support |
|
| Gigabit Ethernet Port (RJ45) |
2 |
| 10 Gigabit Ethernet Port |
2 x 10GbE SFP+ |
| Jumbo Frame |
|
| PCIe Slot |
2
Slot 1: PCIe Gen 2 x1
Slot 2: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
| USB 3.2 Gen 1 port |
3 |
| Audio Output |
1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers) You cannot use the speakers and the line-out jack simultaneously. |
| Form Factor |
Tower |
| LED Indicators |
System Status, LAN, USB, HDD1~8 |
| Buttons |
Power, Reset, USB Copy |
| Dimensions (HxWxD) |
188.2 × 329.3 × 279.6 mm |
| Weight (Net) |
6.38 kg |
| Weight (Gross) |
8.61 kg |
| Operating temperature |
0 - 40 °C (32°F - 104°F) |
| Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode |
24.53 W |
| Power Consumption: Operating Mode, Typical |
49.43 W Tested with drives fully populated. |
| Fan |
System fan: 2 x 120mm, 12VDC
CPU fan: 1 x 60mm |
| Sound Level |
20.7 db(A) |
| System Warning |
Voice prompts or Buzzer |
| Kensington Security Slot |
|
| Max. Number of Concurrent Connections (CIFS) |
1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
|
|
