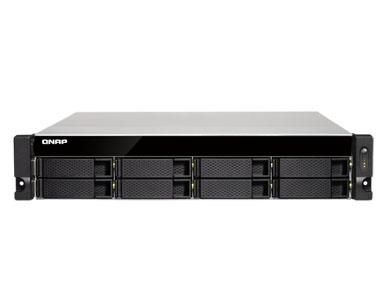

TS-853BU-8G-US - 2U 8-bay NAS/iSCSI IP-SAN, Intel Celeron Quad-core 1.5GHz, 8GB RAM, 10GbE-ready, PCIe Expansion Slot, Single PS by QNAP
|
|
|
- PCIe slot supports installing a QNAP QM2 dual-port M.2 SSD/10GbE card, a compatible wireless adapter, or a USB 3.2 Gen 2 card.
- Supports dual-channel 4K H.264 hardware decoding and on-the-fly or offline transcoding
- Qfiling automates file organization and Qsirch provides full-text search for easier file management
- QRM+ enables centralized management of remote Windows®, Linux® and IPMI-compatible devices.
- A hybrid approach to virtualization in one NAS: Virtualization Station and Container Station
- Scalable storage space with VJBOD and UX-1200U-RP/UX-800U-RP expansion enclosures
Mfg SKU # : | TS-853BU-8G-US |
|
|
|
The TS-853BU-8G-US is a 2U rackmount NAS that easily fits into a standard 19-inch rack, providing an ideal storage solution in the server room for small and medium businesses. The TS-853BU comes with a PCIe slot for boosting potential applications: the QNAP QM2 expansion card can be installed to add an M.2 SSD cache/10GbE connectivity, a compatible wireless card can be installed to use the TS-853BU as a wireless access point, and a USB 3.2 Gen 2 card can be added for easier backup to/from multiple external storage. The TS-853BU also provides a wide range of value-added features: 4K video playback and real-time transcoding; deployment of virtual environments through Virtualization Station and Container Station; centralized management of remote Windows®, Linux® and IPMI-compatible devices with QRM+; and web automation services with IFTTT Agent.
TS-853BU-8G-US
CPU |
Intel® Celeron® J3455 quad-core 1.5 GHz processor (burst up to 2.3 GHz) |
CPU Architecture |
64-bit x86 |
Graphic Processors |
Intel® HD Graphics 500 |
Floating Point Unit |
|
Encryption Engine |
(AES-NI) |
System Memory |
4GB DDR3L (2 x 2 GB) |
Maximum Memory |
8 GB (2 x 4GB) |
Memory Slot |
2 x SO-DIMM DDR3L When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots. |
Flash Memory |
4GB (Dual boot OS protection) |
Drive Bay |
8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility |
3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
Hot-swappable |
|
M.2 SSD Slot |
Optional via a PCIe adapter |
SSD Cache Acceleration Support |
Drive bays 1 to 2 |
Gigabit Ethernet Port (RJ45) |
4 |
Jumbo Frame |
|
PCIe Slot |
1
Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance. |
USB 3.2 Gen 1 port |
4 |
USB 3.2 Gen 2 (10Gbps) Port |
Optional via a PCIe adapter |
HDMI Output |
1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz) |
Form Factor |
2U Rackmount |
LED Indicators |
HDD 1-8, Status, LAN, Expansion, Power |
Buttons |
Power, Reset |
Dimensions (HxWxD) |
89 × 482 × 534 mm |
Weight (Net) |
10.02 kg |
Weight (Gross) |
13.65 kg |
Operating temperature |
0 - 40 °C (32°F - 104°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit |
ATX 250W (x1), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz |
Power Consumption: HDD Sleep Mode |
30.9 W |
Power Consumption: Operating Mode, Typical |
52.1 W Tested with drives fully populated. |
Fan |
2 x 70mm, 12VDC |
Sound Level |
28.2 db(A) |
System Warning |
Buzzer |
Max. Number of Concurrent Connections (CIFS) |
1500 |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
|
|
