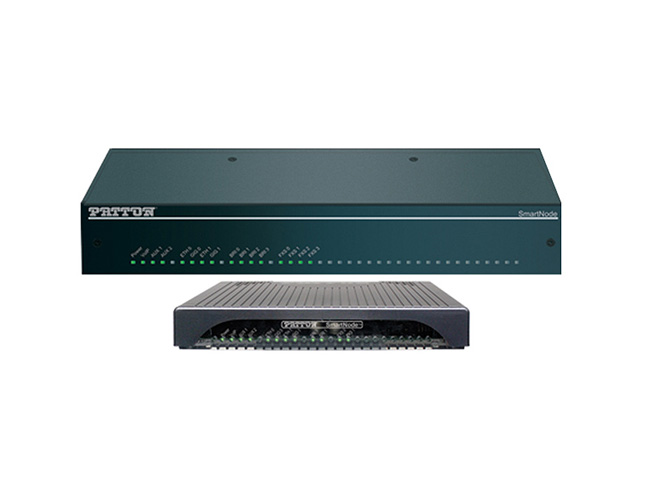

EUI - SmartNode eSBC, 4 BRI, 4FXS, 8 VoIP Calls not upgradebale, or 4 SIP-SIP calls (SIP b2b UA) upgra
by PATTON

BRI & FXS/FXO interfaces—2 or 4 ISDN BRI S0/T0 and 2 or 4 FXS/FXO ports. 4 -8 G.722/G.711 or 4 T.38 calls simultaneously. Incudes SIP TLS/SRTP.
SIP Registrar - License is included in ALL eSBC products.
Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fall-back to alternative routes. Simultaneouslyconnects to multiple SIP services/IP PBXs.
WAN Broadband Access — VDSL 2 & ADSL2+ and G.SHDSL-EFM/ATM Broadband WAN interface.
Network Monitoring —Embedded Packet Smart Agent for network monitoring and assessment 24x7.***
Auto-Provisioning —Secure zero-touch provisioning (HTTPS) for ease of use.
Proprietary OS—Utilizes proprietary Trinity software for enhanced security.
Access link redundancy —Through USB port, using 3G/4G Cellular Modem module
Ease of Use—Patton's Web Wizard is a time saving tool for a fast and reliable installation.
Full VoIP protocol support—SIPv2, SIPv2 over TLS, ISDN, DSS1, QSIG**, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and major IP-PBX manufacturers.
Why SmartNode™?

Patton Quality
Made in the USA
Unrivalled Customer Support
FREE Support and Upgrades

Description
Specification
Datasheet

The Patton Model SN5551-4BIS4JS8VHP-EUI Enterprise Session Border Controller bridges a wide range of IP-PBX products to their SIP Trunk service providers. With its built-in security features such as SIP TLS, SRTP, Stateful Firewall and secure provisioning, it protects the LAN networks from fraud strikes out of the Internet.

The combo configuration of 2 BRI/2 FXS/FXO or 4 BRI/4 FXS/FXO, fits the requirements of small and medium sized enterprises requiring a solution to enable legacy equipment for VoIP networks.

The unique WebWizard enables easy and hassle-free installations, and lets technical people create their own Web interface.

With the separate config domain feature, the SN5550 will be the service demarcation point for SIP trunk service providers, so the local administrator only has to modify configuration settings facing the LAN IP-PBX.

Call Capacity	4–8 simultaneous G.722 / G.711or T.38 fax calls
Voice Signaling	SIPv2 & SIPv2 over TLS SIP call transfer, redirect Overlap or en-bloc dialing DTMF in-band, out-of-band Configurable tones
Call Routing & Services	Regular expression number matching Regular expression number manipulation Least Cost Routing Number blocking Short-Dialing Digit collection Distribution-Groups and Hunt-Groups
FXS Connectivity	2 or 4 FXS ports, RJ-11/12 2-wire Loopstart EuroPOTS (ETSI EG201188) Programmable AC impedance, feeding, ring and on-hook voltage Caller-ID FSK and ITU V.23/Bell 202 generation Long Reach FXS—10 km @ 3REN load Secondary Surge protection (optional)
ISDN	2 or 4 BRI S0 ports, RJ-45 NT/TE configurable per port Built-in line power on each port (total 4W) DSS1, Q.921, Q.931. NTT-64 HP< High Precision Clock Stratum 3 CO Point-point and point-multi-point Lifeline Bypass Relay Optional QSIG support*
Voice Processing	G.722 G.711m/A-law G.723.1 (6.4 kbps) G.729, 729a, 729ab (8 kbps) G.726 (16, 24, 32, 40 Kbps) AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps) iLBC at 13.33 kbps (SIP-SIP only) G.168-2004 echo cancellation (128 ms) 4–8 simultaneous low-band-width voice or T.38 fax calls 4–8 HD calls with SRTP Up to 200 SIP to SIP calls** 2–4 SIP transcoded calls* Transparent ISDN data (RFC 4040) Silence suppression and comfort noise Adaptive and configurable dejitter buffer Configurable RTP packet length
Quality of Service	Patton Cloud network monitoring*** Voice priority, DownStreamQoS™ Traffic Management, shaping policing IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Connectivity	Two 10/100/1000Base-T Ethernet ports 1 USB port for USB Modem Failover Auto-MDIX DHCP Client PPPoE Client (multi-session) IP Multi-Netting, VLAN, Secondary IP IPv4, Basic IPv6 ICMP Dynamic and static NAT and NAPT ACL, Stateful Firewall DNS, DynDNS DHCP Server SNTP Client
Management	Patton Cloud Orchestrated Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access Zero Touch Provisioning TR-069, TFTP, HTTP, HTTPS configuration up- and download TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image SNMPv3 agent - MIB II and private MIB Separate config domain (LAN side config and WAN side config) Built-in diagnostic tools Secure Auto-Provisioning with built in root CA
Broadband Access	G.SHDSL 4 or 8 wire: ATM: G.SHDSL ITU-T G991.2, Annex A, B, F, G • Up to 11.4 Mbps • PPPoE • PPPoA, IPoA, 8PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs) EFM mode compliant to IEEE 802.3 G.998.2 • PPP over Ethernet (RFC2516) • Support of OAM PDU information and functionality (ITU-T Y.1731) • OAMPDU event notification, variable request, variable response, and loopback control ADSL/VDSL: VDSL 2, G.hs, G.Vectoring, up to profile 30a support. ADSL2, ADSL2+, Annex, A, L, M or B, J. IPoA, IPoEoA, PPPoA, PPPoEoA (RFC2364, RFC2516)
Power Consumption	< 10W
Packaged	Plastic enclosure: Dimensions: 7.5w x 3.75h x 10.25d inch (19.05w x 9.525h x 26.035d cm) Weight: 2.12lbs/ 961g Metal enclosure: Dimensions: 7.5w x 3.75h x 10.25d inch (37.46w x 9.525h x 26.035d cm) Weight: 2.74lbs/ 1.242g
Unpackaged	Plastic chassis 2BIS/2FXS: Dimensions: 8.2W x 1.3H x 6.5D in. (20.8W x 3.3H x 16.5D cm) Weight: 0.99lbs / 450g Metal enclosure 4BIS/4FXS (rack mount option): Dimensions: 12.11W x 1.77H x 6.09D in (30.76 W x 4.5 H x 15.46 D cm) Weight: 1.6lbs / 725g
Environment	Operating temperature: 32–104°F (0–40°C) Operating humidity: up to 90%, non-condensing
Compliance	•FCC Part 15 Class A (US EMC) •CE per RTTE 99/5/EC (EMC and LVD)
Safety	•EN60950 •TBR-3 (ISDN BRI/S0) •ITU-T K.21 protection (FXS ports)
