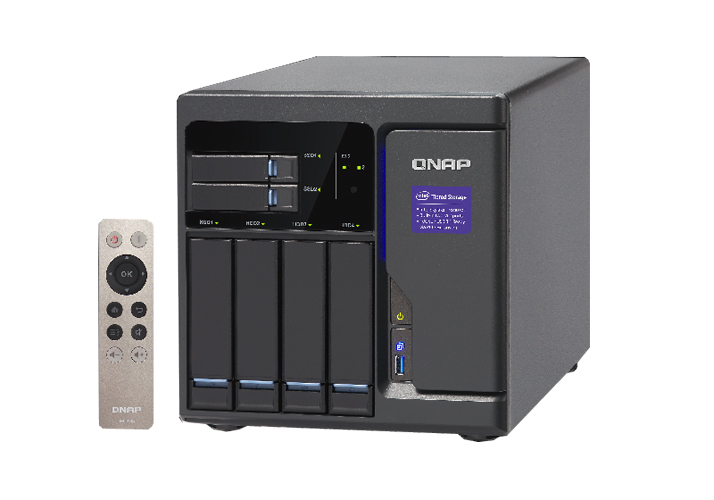

TVS-682-i3-8G-US - High Performance 6 bay (4+2) NAS/iSCSI IP-SAN. Intel Skylake Core i3-6100 3.7 GHz Dual core, 8GB RAM, 10G-rea
by QNAP

Operating System

QTS 4.2 (embedded Linux)

Storage Management

• Storage Space Utilization monitoring
• QNAP flexible Volume/LUN with thin provisioning and space reclaim³
• Disk volume types: RAID 0,1, 5, 6, 10, 5 + hot spare, JBOD, single
• Supports storage pools³
• Supports Qtier™ Technology (Auto Tiering, 8GB System RAM and SSD drives are required)³
• Supports snapshots (4GB System RAM required)³
• Supports Volume/LUN snapshot
• Snapshot manager
• Snapshot clone
• Snapshot vault
• Snapshot replica
• Snapshot agent for Microsoft Windows and VMware vSphere
• Online volume expansion
• Online storage pool expansion
• Online RAID capacity expansion and online RAID level migration
• SMART data migration
• Storage expansion via QNAP TX-500P/UX-800P expansion units³
• JBOD enclosure roaming
• SSD read-only/read-write cache
• Bad block scan and hard drive S.M.A.R.T.
• Bad block recovery & RAID recovery
• Bitmap support

Supported Client OS

• Windows 7, Windows 8, Windows 10, Windows Server 2003/2008 R2/2012/2012R2
• Apple Mac OS X
• Linux & UNIX

Power Management

• Wake on LAN
• Internal hard drive standby mode
• Scheduled power on/off
• Automatic power on after power recovery
• USB and network UPS support with SNMP management
• System sleep mode (S3)³

Supported Browsers

• Microsoft Internet Explorer 10+
• Google Chrome
• Apple Safari 7+
• Mozilla Firefox

Access Right Management

• Batch users creation
• Import/Export users
• User quota management
• Local user access control for CIFS, AFP, FTP, and WebDAV
• Application access control for Photo Station, Music Station, Video Station, and File Station
• Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station

Multilingual Support

• Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

Domain Authentication Integration

• Microsoft Active Directory (AD) & Domain Controller support
• LDAP server, LDAP client
• Domain users login via CIFS/SMB, AFP, FTP, and File Station

File System

• Internal Hard Drive: EXT4
• External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+

myQNAPcloud Service

• Private cloud storage and sharing
• Free host name registration (DDNS)
• Optional myQNAPcloud SSL certificates (DDNS)
• Auto router configuration (via UPnP)
• Web-based file manager with HTTPS 2048-bit encryption
• CloudLink for remote access without any complicated router setup
• myQNAPcloud connect for easy VPN connection (Windows VPN utility)

Networking

• TCP/IP (IPv4 & IPv6: Dual Stack)¹
• Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
• Service binding based on network interfaces
• Squid Proxy server
• Proxy client
• DHCP client, DHCP server
• Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
• UPnP & Bonjour Discovery
• USB Wi-Fi Adapter Support**

** 802.11ac support may vary by model.

Qsync

• Sync files across multiple devices with SSL secure connection
• Selective synchronization for only syncing specific folders
• Use team folders as a file center for greater team collaboration (maximum sync tasks: x86:32, ARM:5)
• Shares files by links via e-mail
• Policy settings for conflicting files and file type filter support
• Version control: up to 64 versions.
• Unified privilege management
• Unified configuration management
• Supports central configuration mode
• Supports remote erase/restore
• Supports shared folders sync
• Supports Windows & Mac OS

Network & Virtual Switch

• TCP/IP (IPv4 & IPv6: Dual Stack)¹
• Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
• DHCP client, DHCP server
• USB Wi-Fi Adapter Support**
• Virtual Switch

Web Administration

• Multi-window, multi-tasking based system management
• Smart toolbar and dashboard for neat system status display
• Dynamic DNS (DDNS)
• SNMP (v2 & v3)
• Resource monitor
• Network recycle bin for file deletion via CIFS/SMB, AFP, and File Station
• Automatic Cleanup
• File Type Filter
• Comprehensive logs (events & connection)
• Syslog client/server
• System settings backup and restore
• Mobile app: Qmanager for remote system monitoring & management

Security

• Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
• CIFS host access control for shared folders
• FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption²
• AES 256-bit external drive encryption²
• Importable SSL certificates
• Instant alerts via email, SMS, beep, push service, and LCD panel³
• 2-step verification

File Server

• File sharing across Windows, Mac, and Linux/UNIX
• Microsoft networking
• Windows ACL
• Advanced folder permissions for CIFS/SMB, AFP, FTP
• Shared folder aggregation (CIFS/SMB)

FTP Server

• FTP over SSL/TLS (Explicit)
• FXP support

HD (HybridDesk) Station 3.1³

• Watch various online content such as Flickr, Picasa, Shoutcast, etc.
• Web browsers (Chrome, Firefox)
• Supports international keyboards, input and mouse
• Supports user login permissions
• A variety of applications are available including Skype, Plex Home Theater, and more
• Up to 7.1 channel audio passthrough is supported

Note:
The playback and quality of some video files may be affected by the system’s CPU and GPU decoding abilities.

File Station

• Supports mounting cloud drives (such as Google Drive, Dropbox, Microsoft OneDrive, Amazon Drive, Yandex Disk and Box).
• Supports mounting remote shared folders through FTP, WebDAV or Microsoft networking (SMB/CIFS)
• Supports opening documents via Office Online, Google Docs or Chrome Extension (Edit Office files in Google Docs, Sheets, and Slides)
• Supports ISO Mounting (Up to 256 ISO Files)
• Supports sharing download links and upload links
• Drag-n-drop Files via Chrome and Firefox Browsers
• Photo, music, and video preview and playback with hardware-accelerated transcoding³
• File Compression (ZIP or 7z)
• Creation of and sending download links for sharing public files with expiration date and password protection
• Supports displaying subtitles (*.SRT, UTF-8 format)
• Video seeking support for video playback during on-the-fly transcoding³
• Supports slideshow playback in media viewer
• Mobile App: Qfile for file browsing and management

Linux Station

• Support install the Ubuntu OS via Linux Station. Use your NAS as an Ubuntu PC using the NAS HDMI output.
• Download and use a variety of applications from the Ubuntu Software Center.
• Supports remote desktop to monitor and access Ubuntu remotely.
• An open source software platform for developers.

Note: The NAS requires at least 4GB RAM and Container Station must be installed.

Transcode Management

• Transcode video files to 240p, 360p, 480p, 720p and 1080p resolution
• Automatic video transcoding for watched folders
• Hardware accelerated transcoding support³
• Embed subtitles into videos for background transcoding

Virtualization Station³

• Supports Virtual Machine (VM) creation to run operating systems such as Windows, Linux, Unix and Android
• Supports VM import and export
• Supports VM cloning & snapshots
• Supports VM backup and restore
• VM console can be displayed via HDMI output - QVM
• HTML5-based shared remote console
• Supports three different networking modes: Isolated, External-only and Bridged
• Supports GPU pass-through via the discrete card

Backup Station

• Remote replication server (over rsync)
• Real-time remote replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB server
• Works as both RTRR server & client with bandwidth control
• Real-time & scheduled backup
• Backup versioning for RTRR
• Snapshot support for RTRR/Rsync
• Encryption, compression, file filter, and transfer rate limitation
• Desktop backup with QNAP NetBak Replicator for WindowsⓇ
• Apple Time Machine backup support
• Data backup to multiple external storage devices
• Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.

Container Station

• Supports LXC and Docker
• Download applications from the built-in Docker Hub Registry
• Supports one-click installation, container export/import & console mode
• Supports two network modes (NAT and host)
• Supports auto-start containers
• Supports downloading Docker certificates
• Supports adding private registries
• Added an application repository for users to switch to any repository on GitHub.com.

Cloud Drive Sync

• Multiple cloud account management like Google Drive, Dropbox, OneDrive, and hubiC
• Supports multiple cloud accounts
• Manual, scheduled, periodic and continuous sync
• Flexible file filtering using type, date, and size
• SSL transfer encryption
• Dashboard and job statistics
• Configurable network error recovery options
• Extensive job activity logging for tracing history of status and statistics
• Concurrent job execution and multi-threaded data transfer
• Per-account bandwidth throttling

Signage Station

• Supports dynamic content including videos, images, music, and text
• Supports multi-user collaboration
• Supports sharing by email and social network
• Supports design software: iArtist Lite
• Supports playback on Chrome browser

Cloud Backup Station

• S3 Plus (including Amazon S3)
• Amazon Glacier
• Google Cloud Storage
• WebDAV-based cloud storage
• Microsoft Azure
• OpenStack Swift

Qsirch

• Supports full-text search
• Supports near real-time search
• Bar chart to show data distribution
• Supports previews for photos, music, videos, Gmail, PDF .etc
• Show search results using thumbnails or a list
• Supports search Chrome extension

Print Server

• Max number of printers: 3
• Supports Internet Printing Protocol
• Print job display and management
• IP-based and domain name-based privilege control

iSCSI (IP SAN)

• iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs combined)
• Supports LUN mapping & masking
• Online LUN capacity expansion
• Support for SPC-3 persistent reservation
• Supports MPIO & MC/S
• iSCSI LUN backup, one-time snapshot, and restoration
• iSCSI connection and management by QNAP Windows Qfinder
• Virtual disk drive (via iSCSI initiator)
• Stack chaining master
• Max No. of virtual disk drives: 8

Photo Station

• Show photos by thumbnails, list, timeline, or folder view
• Supports virtual/smart albums
• Validity control for sharing albums
• Tag photos with text, colors, and ratings
• Slideshows with background music and different transition effects
• Geotag photos and display them on Google maps
• Supports uploading photos/videos to Picasa, Flickr, Weibo, YouTube
• Supports face detection (with the Photo Station Extension)
• Supports PDF to image conversion (with the Photo Station Extension)
• Supports Facebook friends login
• Backup/Restore album configuration

Surveillance Station

• Supports over 3,000 IP cameras
• Includes 8 free camera licenses, up to 80 camera channels by purchasing additional licenses³
• Instant playback to check recent events
• Visual aid by e-map
• Playback and speed control using the shuttle bar
• Video preview on playback timeline
• Intelligent video analytics (IVA) for advanced video searching
• Surveillance client for Mac
• Mobile surveillance app: Vmobile (iOS and Android)
• Mobile recording app: Vcam (iOS and Android)

Music Station

• Play or share music via web browser
• Supports streaming music to multiple devices.
• Supports changing album covers via Google search or by uploading photos.
• Internet radio (MP3)
• Up to 8 music alarms
• Mobile app: Qmusic for music streaming and management

VPN Server

• Secure remote access: PPTP、L2TP/IPsec & OpenVPN VPN services
• Max number of clients: 45

iTunes Server

• Audio and video sharing for Windows® & Mac iTunes

DLNA Server

• Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
• Support CUE indexing file for APE, FLAC audio format.
• Video and Audio On-the-fly Transcoding³

Video Station

• Show photos by thumbnails, list, timeline, or folder view
• Supports virtual/smart collections
• Tag videos with text, color, and ratings
• Share video links to social websites or through email
• Display movie information and posters from Internet sources or user-uploaded files
• Supports displaying subtitles (*.SRT,*.ASS, *.SSA)
• Supports online searching and downloading of subtitles as well as importing subtitle files
• Supports adjusting the display style of subtitles
• Supports Facebook friends login
• Supports multi-zone video display
• Video seeking support for video playback during on-the-fly transcoding³
• Mobile app: Qvideo for online video browsing and management

Q’center (NAS CMS)

• Multiple NAS monitoring
• Utilization history reports
• Unified configuration management
• Visual display reports
• Monitor NAS behind NAT routers with Q’center Assistant
• Virtual appliances supported with Microsoft Hyper-V and VMware ESXi

AirPlay & Chromecast

• Streams videos, photos and music from NAS to Apple TV or Chromecast via File Station, Music Station, Photo Station, Video Station or mobile app (Qfile, Qmusic, Qphoto or Qvideo).

Note: The Media Streaming add-on app must be installed from the QTS App Center.

OceanKTV

• Use the NAS as a karaoke machine.
• Display songs by artists, languages, and favorites.
• Enhance the experience with effects such as tuning echo, key, or applause
• Control the playlist with a mobile app.
• Supports keyboard and remote control (RM-RF001/ RM-IR002).

Note: Microphone not included.

Download Station

• PC-less BT, FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl download (up to 500 Tasks)
• BT download with search, Magnet Link and PT support
• Scheduled download and bandwidth control
• RSS subscription and download (broadcatching)
• Proxy support for BT download
• Mobile app: Qget for downloads browsing and management

Qfinder Pro with Storage Plug & Connect

• Creating and mapping shared folders by QNAP Windows Qfinder Pro
• Creation of and connection to iSCSI target/LUN

Notes Station

• Direct and quick backup from Evernote with re-editing availability
• Supports Google Calendar
• Import/Export PDF and .epub file
• RSS live feed and auto update
• Online quick preview of multimedia attachments
• Notes encrypt/decrypt
• Smart snapshot for version control
• Full site backup for admin user

App Center

• Over 100 official and community software add-ons
