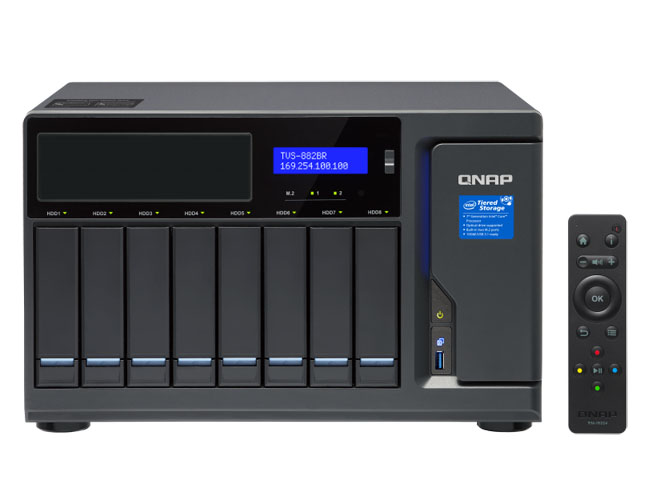

QNAP TVS-882BR-i7-32G-US - *Discontinued* - I7-7700 32GB 3.6GHZ 8-Bay NAS
by QNAP

The TVS-882BR-i7-32G-US uses 7th Generation Intel® 14nm multi-core processors, providing advanced hardware with enhanced tiering storage, application-based partitioning and network traffic distribution. The TVS-882BR comes with a 5.25-inch SATA expansion bay, allowing you to install a compatible Blu-ray Disc drive or a RDX docking station (models with a pre-installed optical disc drive or a RDX docking station are available). With simple installation, you can backup the content of your discs/RDX cartridges to NAS for long-term storage and easier sharing, or you can write NAS files to discs/RDX cartridges. Three PCIe Gen.3 slots allows for 10GbE/40GbE NIC, SAS storage expansion card, and USB 3.2 Gen 2 10GbE adapter, making the TVS-882BR ideal for diversified storage applications.

CPU	Intel® Core™ i7-7700 quad-core 3.6 GHz processor, Max turbo to 4.2 GHz
CPU Architecture	64-bit x86
Graphic Processors	9th-generation Intel® HD Graphics
Floating Point Unit
Encryption Engine	(AES-NI)
Hardware-accelerated Transcoding
System Memory	32 GB UDIMM DDR4 (4 x 8GB)
Maximum Memory	64 GB (4 x 16 GB)
Memory Slot	4 x Long-DIMM DDR4
Flash Memory	512MB (DOM for dual OS)
Drive Bay	8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
5.25-inch Expansion Bay	1 x 5.25” disc burner or 2 x slim SATA disc burners
Hot-swappable
M.2 SSD Slot	2 x M.2 2242/2260/2280/22110 SATA 6Gb/s slots The M.2 SSD is not included as standard. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45)	4
Jumbo Frame
PCIe Slot	3 Slot 1: PCIe Gen 3 x8 Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x4
USB 3.2 Gen 1 port	5
USB 3.2 Gen 2 (10Gbps) Port	(Optional)
IR Sensor
HDMI Output	3, HDMI 1.4b
Audio Input	2 x 6.3mm dynamic microphone input jacks
Audio Output	2 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
Form Factor	Tower
LED Indicators	System status, M.2 SSD, 3.5” HDD
LCD Display/ Button
Buttons	Power, Reset, USB Auto Copy
Dimensions (HxWxD)	234.6 × 369.9 × 319.8 mm
Weight (Net)	11.23 kg
Weight (Gross)	12.32 kg
Operating temperature	0 - 40 °C (32°F - 104°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
Power Consumption: HDD Sleep Mode	33.083 W
Power Consumption: Operating Mode, Typical	63.816 W Tested fully populated with WD10EFRX hard drives, TS128GMTS800 M.2 solid-state drives ,and Optical Disc Drive.
Power Consumption: Power Off	63.816 W
Fan	System fan: 3 x 80mm CPU fan: 1 x 90mm
Sound Level	21.6 db(A)
System Warning	Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS)	1500

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
