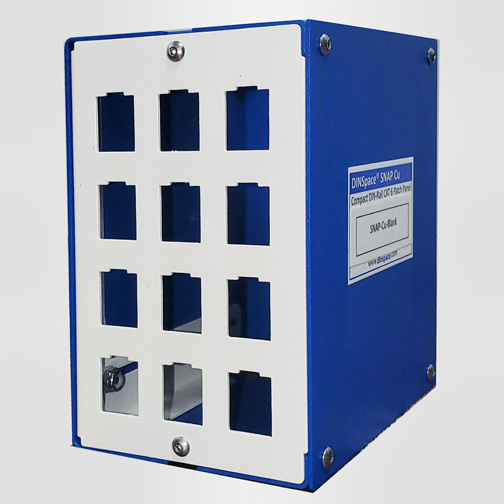

SNAP-Cu-Blank: Compact DIN-Rail or surface-mount Ethernet patch panel. Compact size allows minimum space requirements within control cabinetry. Device includes large openings on top and bottom of the patch panel to accommodate a large volume of field Ethernet cabling. Device features a sliding faceplate with capture mechanism to allow patch panel to be kept open "hands-free".
DINSpace SNAP-Cu-Blank
Ambient Conditionn
- Operating temperature: -40ºC to 68ºC
Mechanical Construction
- Dimensions with adapters installed: (H x D x W) 5.5" x 5.33" x 3.43"
- Mounting options: Rear DIN-Rail, side DIN-Rail or rear surface
- Weight: 2lbs
- Protection class: IP20
Materials of Construction
- Patch panel body and faceplate: 18 gauge powder-coat painted steel
Scope of Delivery and Accessories
- Patch Panel, DIN-Rail mounting adapter
