Moxa TN-4908-ETBN-F-4TXBP-WV-CT-T - 8*FE ETBN firewall router with 4*FE BP port, 24-110 VDC power input, conformal coating -40 t
by MOXA

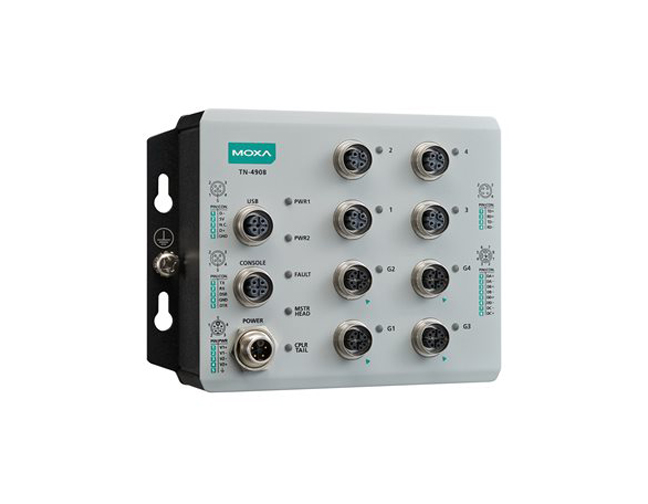

Moxa TN-4908-ETBN-F-4TXBP-WV-CT-T

The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewall, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.

Specifications

• 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 4
• Management:
  • Back Pressure Flow Control
    SNMP Inform
    LLDP
    Syslog
    HTTP
    HTTPS
    Flow control
    SMTP
    QoS/CoS/ToS
    Port Mirroring
    SNMP Trap
    SNMPv1/v2c/v3
    IPv4
    Telnet
    DHCP Server
    SFTP
    SCP
    TFTP
    RARP
    Account Management
    DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255)
    DHCP Server (Option 1/3/6/12/15/28/42/50/55)
    DHCP Relay Agent
• Redundancy Protocols:
  • RSTP
    Static Port Trunk
    Turbo Ring v2
    STP
• Routing Reundancy: VRRP
• Security:
  • Secure Boot
    IPsec
    L2TP (server)
    RADIUS
    Trust access control
• Time management: SNTP, NTP Server/Client
• Console ports: RS-232 (M12 B-coded 5-pin female connector)
• M12 connector: M12 A-coded 5-pin female (for ABC-02 USB storage)
• Input voltage:
  • 24/36/48/72/96/110 VDC
    Redundant dual inputs
    No. of power inputs: 2
• Operating voltage: 16.8 to 137.5 VDC
• Power connector: M12 K-coded 5-pin male connector
• Power consumption (max.): 13.2W
• Overload current protection: supported
• Reverse polarity protection: supported
• Housing: metal
• IP rating: IP40
• Installation: wall mounting
• Operating temperature: -40~70ºC
• EMC: EN 55032, EN 55035
