Moxa TN-4908-WV-CT-T - 8*FE router, 24 to 110 VDC power input, conformal coating, -40 to 70C operating temperature, IP40. by MOXA
|
|
|
|
- 8 Gigabit ports and up to 12 PoE ports
- IEC 61375 ETBN functionality (ETBN models)
- Dual bypass relay
- Supports regular and inner push-pull M12 connectors
- Isolated power input range from 24 to 110 VDC
- Complies with all EN 50155 mandatory test items
- IEC 62443-4-2 Security Level 2 certified
- -40 to 70°C operating temperature range
|
|
|

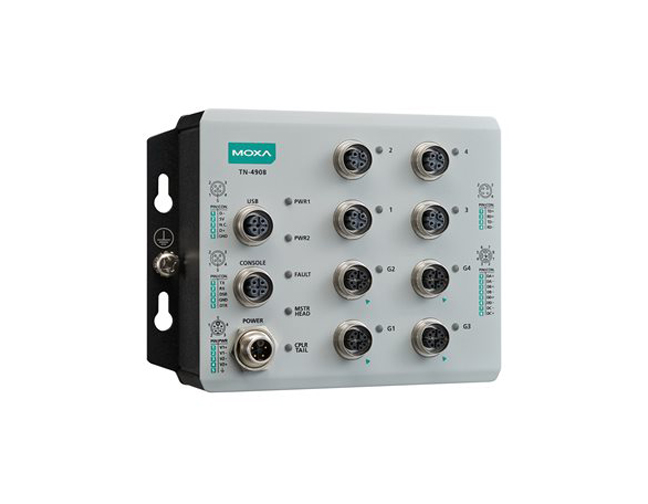

Moxa TN-4908-WV-CT-T
The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewall, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.
The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.
Specifications
- 10/100BaseT(X) ports (M12 D-coded 4-pin female connector): 8
- Management:
- Back Pressure Flow Control
SNMP Inform
LLDP
Syslog
HTTP
HTTPS
Flow control
SMTP
QoS/CoS/ToS
Port Mirroring
SNMP Trap
SNMPv1/v2c/v3
IPv4
Telnet
DHCP Server
SFTP
SCP
TFTP
RARP
Account Management
DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255)
DHCP Server (Option 1/3/6/12/15/28/42/50/55)
DHCP Relay Agent
- Redundancy Protocols:
- RSTP
Static Port Trunk
Turbo Ring v2
STP
- Routing Reundancy: VRRP
- Security:
- Secure Boot
IPsec
L2TP (server)
RADIUS
Trust access control
- Time management: SNTP, NTP Server/Client
- Console ports: RS-232 (M12 B-coded 5-pin female connector)
- M12 connector: M12 A-coded 5-pin female (for ABC-02 USB storage)
- Input voltage:
- 24/36/48/72/96/110 VDC
Redundant dual inputs
No. of power inputs: 2
- Operating voltage: 16.8 to 137.5 VDC
- Power connector: M12 K-coded 5-pin male connector
- Overload current protection: supported
- Reverse polarity protection: supported
- Housing: metal
- IP rating: IP40
- Installation: wall mounting
- Operating temperature: -40~70ºC
- EMC: EN 55032, EN 55035
|
|
|
|
