Moxa VPort P07-2V60M - EN50155, 1080P, H.265/H.264/MJPEG, compact IP camera, PoE, 60mm Lens, -40 to 60C
by MOXA

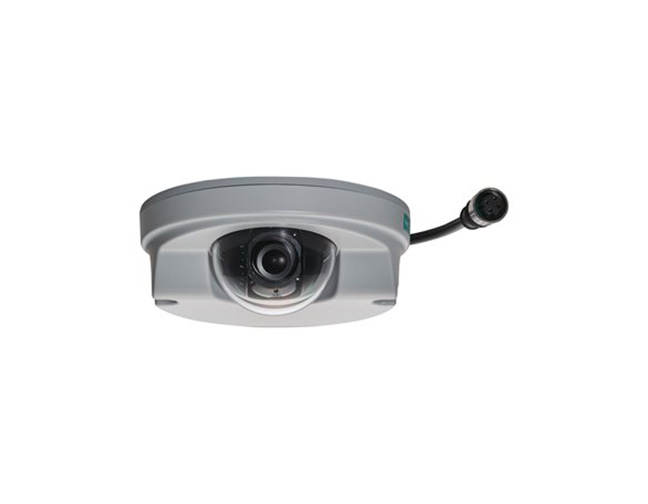

Moxa VPort P07-2V60M

The VPort P07–2 cameras are compact, 2 megapixels (1920 x 1080), H.265/H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK10, mandatory sections of EN 50155,  and support a -40 to 60°C operating temperature range. With a rugged M12 Ethernet port, ONVIF Profile S, T, M, standardization, PoE power inputs, IP66-rated, and the option of changing the different fixed focal-length lens, the VPort P07-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.

Specifications

• PoE ports (10/100BaseT(X), M12 D-coded 4-pin female connector): 1
• Protocols:
  • TCP/IP
    IPv4/IPv6
    UDP
    HTTP
    RTP/RTSP
    ARP
    UPnP
    FTP
    TFTP
    SFTP
    NTP Client
    DNS
    QoS
    IGMP v3
    ICMP
    SNMPv1/v2c/v3
    DHCP Opt66/67
    HTTPS
• password: user-level password protection
• Filter: IP address
• Encryption: HTTPS, SSH
• no. of power inputs: 1
• Source of input power: PoE (IEEE 802.3af)
• Input current: 48 VDC @ 0.097A
• Power connector: M12 Dcode ethernet connector
• Sensor: 1/2.8-in progressive scan CMOS
• Lens:
  • VPort P07-2V24M: f=2.4 mm, F2.0, Diagonal 158°, Horizontal 137°, Vertical 76°
    VPort P07-2V36M: f=3.6 mm, F1.6, Diagonal 117°, Horizontal 95°, Vertical 50°
    VPort P07-2V42M: f=4.2 mm, F1.6, Diagonal 94°, Horizontal 81°, Vertical 44°
    VPort P07-2V60M: f=6.0 mm, F1.8, Diagonal 64°, Horizontal 54°, Vertical 30°
    VPort P07-2V80M: f=8.0 mm, F1.6, Diagonal 48°, Horizontal 40°, Vertical 22°
• Minimum illumination: Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
• Synchronization: internal
• White balance: ATW/AWB
• electronic shutter: Auto, Fixed (1/30 to 1/25000 sec)
• S/N ratio: maximum 50 dB (AGC off; DNR on)
• DNR: built-in 2D/3D DNR
• WDR: 80 dB
• AGC: 2X, 4X, 8X, 16X
• Flickerless control: Automatic, 50 Hz, 60 Hz modes
• Image rotation: Flip, Mirror, 90°, 180°, 270° rotation
• Image setting: Manual tuning with saturation, sharpness, and contrast
• camera angle:
  • Pan: ±15°, Tilt: 35° to 90° for 2.4mm lens, 20° to 70° for 8.0mm lens, 0° to 90° for other lens (controlled manually)
• Video compression: H.265 (MPEG-H part 2/HEVC), H.264 (ISO/IEC 14496-10/AVC), or MJPEG
• Video output: via Ethernet
• Video streams: 4 independent video streams
• Video resolution and FPS (frame per second): Note: * The FPS can be up to 60 and 50 respectively when the WDR function is disabled.
• Video viewing
  • DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    LDC (Lens distortion correction) for less image warp
    Maximum of 5 simultaneous unicast connections, 50 multicast clients
• Video standards: ONVIF Profile S, T, M
• Intelligent video: camera tampering detection
• Video motion detection: 3 independently configurable areas
• imaging: JPEG snapshots for pre/trigger/post alarm images
• Custom alarms: HTTP event servers for setting customized alarm actions
• FTP messaging: automatic transfer of stored images via FTP as event-triggered actions
• Pre-alarm buffer: video buffer for JPEG snapshot images
• Memory size: 8 GB
• operating systems: windows 10 or above
• Browser:
  • Internet Explorer 11 or above
    Chrome: Version 118 or above
    Microsoft Edge: Version 118 or above
• Multimedia: directX 12 or above
• Installation: panel mounting
• Housing:
  • Plastic top cover, metal bottom plate
    IP66 rain and dust protection
    IK10 vandal resistant protection
    Transparent PC cover
• Operating temperature: -40~60ºC
