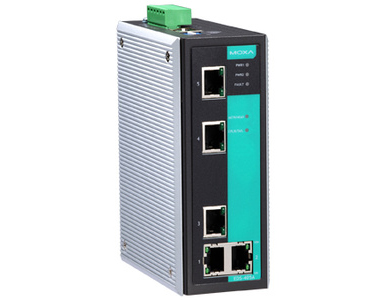

EDS-405A-PN-T - Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75 Degree C operating temperature
by MOXA

The EDS-405A-PN-T are entry-level 5 port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.

• Technology
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging
Protocols	IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, PROFINET*, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control
Note	* EDS-405A/408A-PN series only
• Switch Properties
MAC Table Size	2 K (EDS-405A), 8 K (EDS-408A)
Packet Buffer Size	1 Mbit
• Interface
Fiber Ports	100BaseFX ports (SC/ST connector)
RJ45 Ports	10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port	RS-232 (RJ45 connector)
DIP Switches	Turbo Ring, Master, Coupler, Reserve
LED Indicators	PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M
Alarm Contact	1 relay output with current carrying capacity of 1 A @ 24 VDC
• Optical Fiber
• Power Requirements
Input Voltage	24 VDC (12 to 45 VDC), redundant dual inputs
Input Current	EDS-405A: 0.24 A @ 24 V EDS-405A-MM/SS: 0.32 A @ 24 V EDS-408A: 0.26 A @ 24 V EDS-408A-MM/SS: 0.35 A @ 24 V EDS-408A-3M/3S/2M1S/1M2S: 0.32 A @ 24 V
Overload Current Protection	Present
Connection	1 removable 6-contact terminal block
Reverse Polarity Protection	Present
• Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	EDS-405A, EDS-405A-MM, EDS-405A-SS: 650 g EDS-408A, EDS-408A-MM, EDS-408A-SS: 650 g EDS-408A-3M/3S/2M1S/1M2S: 890 g
Installation	DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Standards and Certifications
Safety	UL 508, UL 60950-1*, CSA C22.2 No. 60950-1, EN 60950-1**
Hazardous Location	UL/cUL Class 1 Division 2 Groups A/B/C/D*, ATEX Zone 2 Ex nA nC IIC T4 Gc***,  ATEX Zone 2 Ex nA nC op is IIC T4 Gc****
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Marine	EDS-405A/408A, EDS-405A/408A 2 Fiber series: DNV, GL, EDS-408A 3 Fiber series: DNV, GL, LR, ABS, NK
Traffic Control	NEMA TS2
Rail Traffic	EN 50121-4**
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Note	* EDS-405A/408A, EDS-405A/408A 2 Fiber series only ** EDS-408A only *** EDS-405A, EDS-405A 2 Fiber series only **** EDS-408A, EDS-408A 2 Fiber series only Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time	EDS-405A Series: 392,000 hrs EDS-408A Series: 1,102,845 hrs
Database	Telcordia (Bellcore), GB
