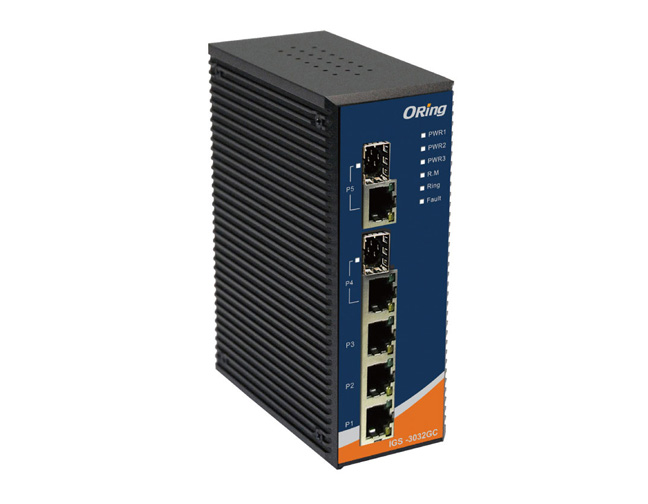

Physical Ports |
|
10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX |
3 |
Gigabit Combo Ports with 10/100/1000Base-T(X) and 100/1000Base-X SFP Port |
2 |
Technology |
|
Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
MAC Table |
8192 MAC addresses |
Priority Queues |
4 |
Processing |
Store-and-Forward |
Jumbo Frame |
Up to 9KBytes |
Switch Properties |
Switching latency : 7 μs
Switching bandwidth : 10Gbps
Max. Number of Available VLANs : 4096
IGMP multicast groups : 1024
Port rate limiting: User Define |
Security Features |
Enable/disable ports MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security |
Software Features |
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 30ms over 250
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support Port Trunk support
Port Trunk support
MVR (Multicast VLAN Registration) support |
Network Redundancy |
O-Ring
Open-Ring
STP
RSTP
MSTP |
RS-232 Serial Console Port |
RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
LED Indicators |
|
Power Indicator |
Green : Power LED x 3 |
R.M. Indicator |
Green : Indicates that the system is operating in O-Ring Master mode |
Ring Indicator |
Green : Indicates that the system is operating in O-Ring mode |
Fault Indicator |
Amber : Indicates unexpected event occurred |
10/100/1000Base-T(X) RJ45 port Indicator |
Green for port Link/Act. Amber for 100Mbps indicator |
100/1000Base-X SFP port Indicator |
Green for port Link/Act. |
Fault Contact |
|
Relay |
Relay output to carry capacity of 1A at 24VDC |
Power |
|
Redundant Input Power |
Triple DC inputs: +12 ~ +48VDC or -12 ~ -48VDC on 7-pin terminal block, 12 ~ 45VDC on power jack |
Power Consumption (Typ.) |
10 Watts |
Overload Current Protection |
Present |
Reverse Polarity Protection |
Present on terminal block |
Physical Characteristics |
|
Enclosure |
IP-30 |
Dimensions (W x D x H) |
54.1(W)x106.1(D)x145.4(H) mm (2.13x4.18x5.72inch.) |
Weight (g) |
820g |
Environmental |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Operating Temperature |
-40 to 70°C (-40 to 158°F) |
Operating Humidity |
5% to 95% Non-condensing |
Regulatory Approvals |
|
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock |
IEC60068-2-27 , EN61373 |
Free Fall |
IEC60068-2-32 |
Vibration |
IEC60068-2-6 , EN61373 |
Safety |
EN60950-1 |
