Supports 1x10/100/1000 Base-T(X) for power and data OutputFully compliant with IEEE802.3at/802.3afAuto protection for Over Voltage Power Input and over current outputSupports Power Output up to 30WattsSupports Power Input range from 12Vdc to 57VdcUltra-rugged enclosure M12 connector for toughest industrial usagesWall mounting enabled
|
|
|
TINJ-101GT-M12-24V_DESCRIPTION.html

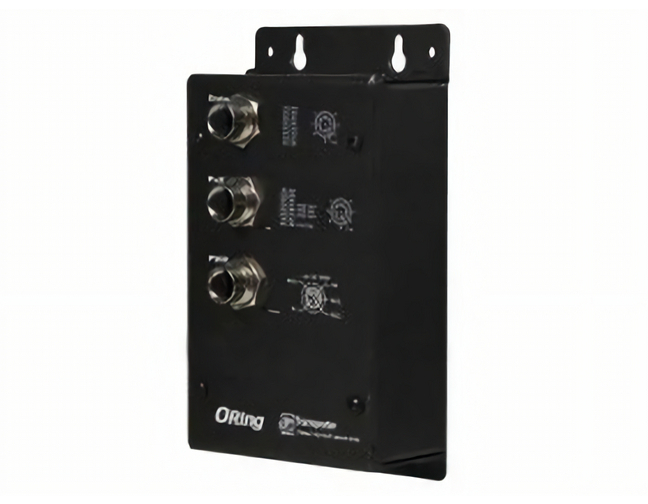

The TINJ-101GT-M12-24V PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TINJ-101GT-M12-24V PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provided 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial environments. TINJ-101GT-M12-24V EN50155 PoE Injector use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the TINJ-101GT-M12-24V PoE Injector. Typically, in Ethernet networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50V insertion, the installer doesn't need to worry about voltage drops caused by cable length. The TINJ-101GT-M12-24V PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
TINJ-101GT-M12-24V.html
Physical ports |
---|
10/100/1000Base-T(X) ports with P.S.E. in M12 | 1 x M12 connectors (8-pin A-coding, female) | 10/100/1000Base-T(X) ports in M12 | 1 x M12 connectors (8-pin A-coding, female) | LED Indicators |
---|
Power Indicator (Power) | Green: Power LED x 1 Green On: Power is on and functioning Normally. | PoE Indicator | 1 x LED Blue On: PoE Device Link Blue Blinking: Detecting PoE Device Blue Off: None PoE Device Detected
| Power |
---|
PoE Output Power | 50V / 600mA, 30 Watts max. | Redundant Input power | Railway 24VDC (12 ~ 57VDC) on 5-pin M12 female A-coding | Overload current protection | Present | Reverse polarity protection | Present | Protection / Certification |
---|
Safety | EN 60950-1 | Physical Characteristic |
---|
Enclosure | IP-40, Iron | Dimensions (mm) | 88.9 (W) x 40 (D) x 178.2 (H)mm3.5 (W) x 1.57 (D) x 7.02 (H) inch | Weight (g) | 446 g | Environmental |
---|
Storage Temperature | -40 to 85? (-40 to 185?) | Operating Temperature | -40 to 75? (-40 to 167?) | Operating Humidity | 5% to 95% Non-condensing |
|
