Tycon Systems TP-POE-48G-24W - 48V 0.5A 24W 10/100/1000MB Passive PoE Power Inserter with NA Power Cord, UL Listed
by TYCON SYSTEMS
|
|
|
|
- 10/100/1000Mb Data Rate
- CAT5 (or higher) for Gigabit
- Compact Size, Shielded RJ45 Jacks
- I.T.E. Power Supply, UL Listed
|
|
|

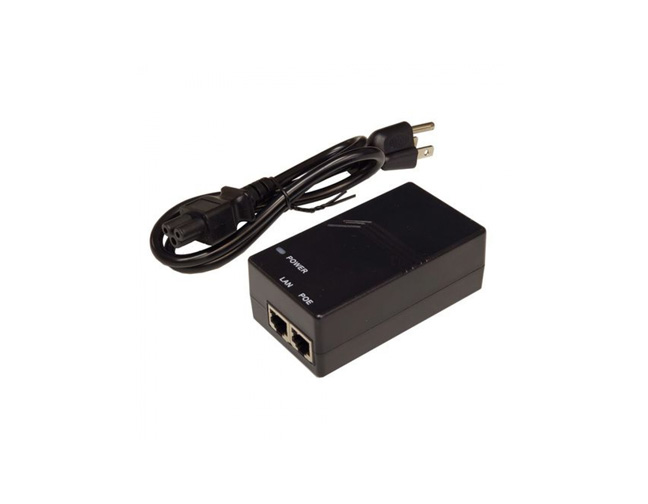

The TP-POE-48G-24W is a compact 10/100/1000MB (GigE) desktop passive PoE inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode B (4,5+ 7,8-) Passive PoE at up to 24W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug.
| AC Input Voltage |
100-240VAC 50/60Hz |
| Output PoE Voltage |
48VDC +/-5% Passive PoE, Mode B (Pins 4,5+ 7,8-) |
| Maximum Load |
0.5A (24W) Max |
| Protections |
Short Circuit, Overcurrent, Surge/ESD (8kV) |
| Efficiency |
86.2% Minimum, Energy-Efficiency Level VI (DoE VI & ERP VI) |
| Ripple / Noise |
120mV p-p |
| Data Rate |
10/100/1000Mbps (Gigabit Ethernet) |
| No Load Consumption |
0.1W Max |
| Operating Temperature |
-20 to +50°C |
| Storage Temperature |
30 to +80°C |
| Operating Humidity |
10% to 90% non condensing |
| Size (L x W x H) |
3.81 x 2.1 x 1.4” (97 x 53.5 x 35.5mm) |
| Weight |
4.7oz (133g) |
| MTBF |
120,000 Hrs |
| Certifications |
UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, EN55022, EN55013, EN55024, EN55020, EN61000-4-5, EN61000-4-4, EN61000-4-5 |
| Connectors |
RJ45 Shielded Jacks |
| Ethernet Cable Compatibility |
CAT5 Gigabit to 100m |
|
|
