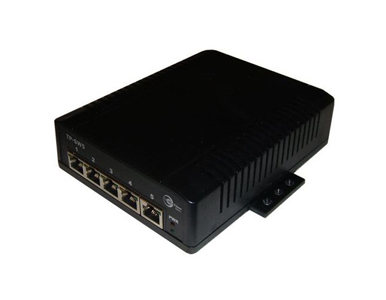

Tycon Systems TP-SW5G-MULTI - 12-56V 5 port High Power (1A/port) Gigabit Passive PoE Layer 2 Switch. Individual Voltage per Port
by TYCON SYSTEMS
|
|
|
|
- High Power Gigabit PoE Switch
- Industrial Temperature Range
- Ability to have different PoE voltages on each port
- Remotely Power Equipment thru CAT5 Cable up to 100m
- 1A per Port max.
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- 1K Self Learning MAC Address Table
- Compact Size
- DIN Rail Mountable with included kit
| Mfg SKU # : | TP-SW5G-MULTI |
|
|
|
TP-SW5G-MULTI: Universal Multi Voltage 10/100/1000MB PoE Switch. Switch accepts up to 4 different voltages (12-57VDC) so user can power both 48V PoE and 24V PoE devices from the same switch. The port can individually be set to Data Only by disconnecting the voltage input to that specific port. 1A per port.
The unit supplies PoE power to the remote device on Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.
The switch accepts DC power from any power supply. The PoE output voltage equals the DC voltage of the power supply used from 12V to 57VDC. The switch also includes an unpowered uplink port.
| Ethernet Standard |
IEEE802.3/IEEE802.3u |
| Ports |
1 data /P o E input and 4 data/P o E, automatic crossover and polarity |
| Transmission Speed |
1000Mbps / 100 Mbps /10 Mbps Auto - negotiation |
| Switch Technology |
Store and Forward |
| Protocol |
CSMA/CD |
| Flow Control |
IEEE802.3x(full - duplex), Back Pressure(half - duplex) |
| Data Transmission Rate |
1488000pps for 1000baseT, 148800pps for 100baseT, 14880pps for 10baseT |
| Address Table |
1K MAC, self - learning |
| Connections |
Shielded RJ45 |
| POE Output Ports |
Port 1 - 4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V - (7,8) |
| Maximum POE Power |
1A per port |
| POE Auto Detection |
Passive P o E |
| POE Protection |
Over Temperature, Over Current, Over/Under Voltage |
| Data Surge Protection |
IEC61000 - 4 - 2 (ESD) ±15kV (air), ±8kV (contact) IEC61000 - 4 - 4 (EFT) 40A (5/50ns) IEC61000 - 4 - 5 (Lightning) 20A (8/20μs) |
| LED’s |
Link (Green On), Activity (Green Blinking ) P o E Detect (Yellow On), P o E Detect Error (Yellow Blinking) Power On (Green On), Power On Alarm (Red On) |
| DC Power Input |
12V to 57VDC, Reverse Polarity Protected. NC Accepts P o E power input on Port 5 |
| Self Consumption |
< 3 Watts |
| Operating Temp |
- 20 to + 7 5°C ( - 4 to 1 67 °F) |
| Operating Humidity (RH) |
5% - 90% (non condensing) |
| Storage Temperature |
- 55 to + 8 5°C ( - 67 to + 185 °F) |
| Dimensions (LxWxH) |
159 x 118 x 40mm (6.3 x 4.6 x 1.6”) |
| Weight |
318g (11oz) |
| Warranty |
2 Years |
|
|
|
|
|
|
