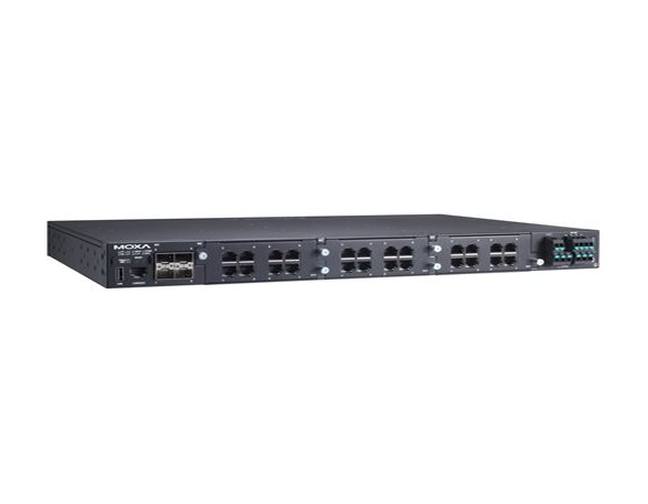

Moxa RKS-G4028-L3-PoE-4GS-HV-T - Layer 3 modular managed Ethernet switch with 4 100/1000BaseSFP ports, 3 slots for Ethernet modu
by MOXA

The RKS-G4028 Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as power substation automation systems (IEC 61850-3, IEEE 1613), railway applications (EN 50121-4), and factory automation systems. The RKS-G4028 Series Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110-220 VDC-VAC dual isolated redundant power supplies increase the reliability of your communications and save on wiring costs.

Input/Output Interface

• Alarm Contact Channels

  • 1 relay output with current carrying capacity of 2 A @ 24 VDC

Ethernet Interface

• 100/1000BaseSFP Slots

  • 4

• Module

  • There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 8-port/6-port modules with 10/100/1000BaseT(X), 10/100BaseT(X), 100/1000BaseSFP, or 100BaseFX (SC/ST connector) interfaces.

    Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.

• Standards

  • IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3bt for Power over Ethernet

Ethernet Software Features

• Management

  • IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

• Filter

  • GMRP, GVRP, GARP, 802.1Q, IGMP Snooping v1/v2/v3, IGMP Querier

• Redundancy Protocols

  • STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Loop Protection, MSTP

• Routing Redundancy

  • VRRP

• Security

  • Broadcast storm protection, Rate Limit, Access control list, Static port lock, Sticky MAC, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and password policy, Secure boot, MAC authentication bypass, Trust access control

• Time Management

  • SNTP, IEEE 1588v2 PTP (hardware-based), NTP Server/Client, NTP Authentication

• Protocols

  • IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

• Unicast Routing

  • OSPF, Static Route

• MIB

  • P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

• Power Substation

  • MMS

Switch Properties

• IGMP Groups

  • 2048

• Jumbo Frame Size

  • 9.6 KB

• MAC Table Size

  • 16 K

• Max. No. of VLANs

  • 256

• Packet Buffer Size

  • 1.5 Mbits

• Priority Queues

  • 8

• VLAN ID Range

  • VID 1 to 4094

USB Interface

• Storage Port

  • USB Type A

MicroSD Interface

• Storage Port

  • MicroSD card

Serial Interface

• Console Port

  • RS-232 (RJ45)

Power Parameters

• Total PoE Power Budget

  • 300 W

• Max. PoE Power Output per Port

  • IEEE 802.3af: 15.4 W
    IEEE 802.3at: 30 W
    IEEE 802.3bt: 90 W

• Input Voltage

  • 110/220 VDC, 48 VDC (for the PoE system), 110/220 VAC

• Operating Voltage

  • 88 to 300 VDC, 85 to 264 VAC
    46 to 57 VDC (for the PoE system)

• Overload Current Protection

  • Supported

• Reverse Polarity Protection

  • Supported

• Input Current

  • EPS: Max. 7.50 A @ 48 VDC
    Max. 0.55 A @ 110 VDC
    Max. 0.29 A @ 220 VDC
    Max. 1.01 A @ 110 VAC
    Max. 0.62 A @ 220 VAC

Physical Characteristics

• IP Rating

  • IP30

• Dimensions

  • 440 x 44 x 300 mm (17.32 x 1.37 x 11.81 in)

• Weight

  • 5000 g (11.02 lb)

• Installation

  • Rack mounting

Environmental Limits

• Operating Temperature

  • -40 to 75C (-40 to 167F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• Safety

  • EN 62368-1, UL 62368-1, UL 61010

• EMC

  • EN 55032/35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

• Power Substation

  • IEC 61850-3, IEEE 1613

• Railway

  • EN 50121-4

• Freefall

  • IEC 60068-2-32

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 508,190 hrs

• Standards

  • Telcordia (Bellcore), GB

RKS-G4028-L3-PoE-4GS-HV-T.pdf

1,101 K
