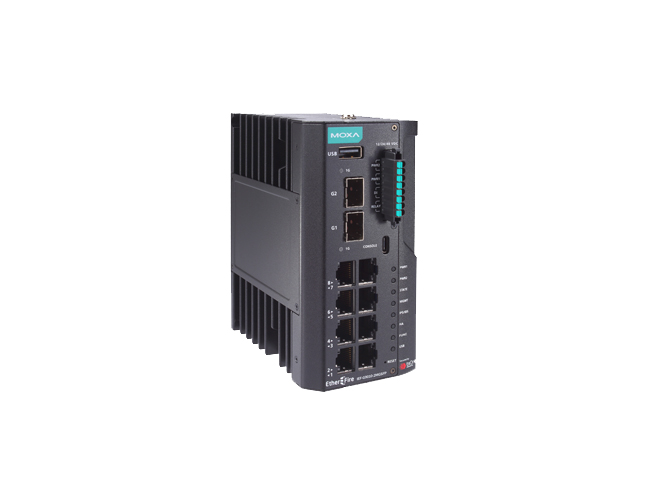

IEF-G9010-2MGSFP-Pro-H-T - Industrial next-generation firewall with 8 10/100/1000BaseT(X) ports and 2 Multi-Gigabit SFP ports, c by MOXA
|
|
|
- Compact industrial IPS firewall for network segmentation
- Industrial-grade Intrusion Prevention/Detection System (IPS/IDS)
- Object-based policy enforcement rules for protocol filtering and traffic control
- Easy network setup with Network Address Translation (NAT)
- Full OT network visibility when used with Security Dashboard Console (SDC)
- -40 to 75°C wide operating temperature range (-T models)
|
|
|
IEF-G9010-2MGSFP-Pro-H-T_DESCRIPTION.html
The Moxa IEF-G9010 Series industrial IPS firewall can
segment and hide your network and protect mission-critical assets
with industrial-grade IPS and granular access control. Meanwhile,
the Security Dashboard Console (SDC) software, when used together
with the IEF-G9010 Series, offers another layer of protection through
centralized critical asset visibility, network analysis, and auto
pattern updating.
Input/Output Interface
Ethernet Interface
LED Interface
-
LED Indicators
PWR1, PWR2, STATE, MGMT, IPS/IDS, HA, FUNC, USB, 10/100 Mbps copper port, 1000 Mbps copper port, 1000 Mbps SFP port
NAT
Ethernet Software Features
-
Unicast Routing
Static Route
-
Management
SSH, Telnet, NTP Client, DHCP Server/Client, DNS
-
Authentication
Local Account Accessibility
DoS and DDoS Protection
-
Technology
ICMP Flood, IGMP Flood, UDP Flood, UDP Port Scan, TCP SYN Flood, TCP Port SYN Scan, TCP Port FIN Scan, TCP Port NULL Scan, TCP Port Xmas Scan
Firewall
-
Throughput
Max. 360,000 packets per second (max. 1,000 Mbps)
-
IPS Throughput
> 450 Mbps when the packet size is greater than 128 bytes
-
Latency
< 500 microseconds
-
Concurrent Connections (TCP)
60,000
-
Deep Packet Inspection
Modbus TCP
Modbus UDP
EtherNet/IP
PROFINET-DCP
CIP
Omron FINS
SLMP
Siemens S7 Comm.
Siemens S7 Comm. Plus
Additional protocols will be supported through future firmware updates.
-
Policy Enforcement Rules
64 rules
-
ICS Protocol Filter Profiles
32 profiles
-
Automatic Pattern Updates via SDC
Pro Models: Supported (1 year of updates included)
Pro-H Models: Supported (requires IEF pattern update license)
-
Manual Pattern Updates
Pro Models: Supported (1 year of updates included)
Pro-H Models: Supported (requires IEF pattern update license)
Management
Real-Time Firewall / VPN Event Log
-
Event Type
Cybersecurity, Policy enforcement, Protocol Filter, Assets detection, System event
-
Media
Local storage, Syslog server
Serial Interface
Power Parameters
Physical Characteristics
Environmental Limits
-
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
-
Storage Temperature
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
Safety
UL 60950-1 Ed.2, UL 62368-1
-
EMC
EN 55032/35, EN 61000-6-2/-6-4
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
-
Railway
EN 50121-4
-
Traffic Control
NEMA TS2
-
Shock
IEC 60068-2-27
-
Freefall
IEC 60068-2-32
-
Vibration
IEC 60068-2-6
MTBF
-
Time
1,070,000 hrs
-
Standards
Telcordia (Bellcore), GB
|
|
