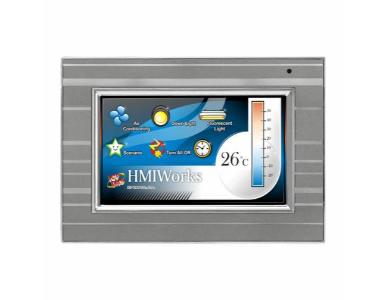

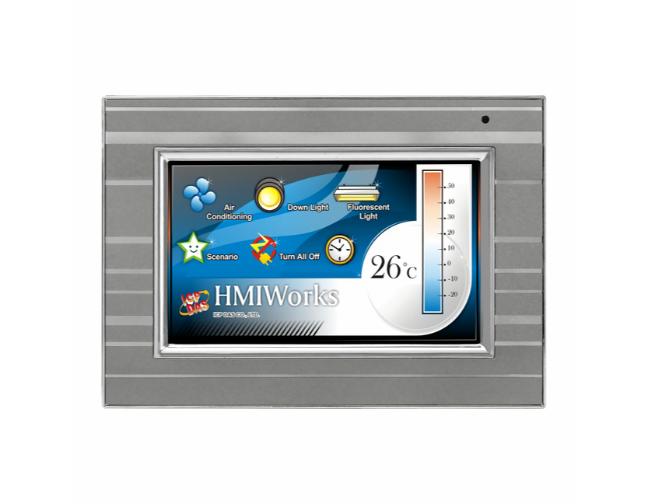

ICP DAS TPD-433-M2 - 4.3" Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (Panel: Gray, RoHS)
by ICP DAS
|
|
|
|
TPD-433-M2_SUMMARY.html
TPD-433-M2 - 4.3" Touch HMI device with RS-485, RS-232 (3 pin), USB, RTC, Ethernet (Panel: Gray, RoHS)
|
|
|
TPD-433-M2_DESCRIPTION.html
ICP DAS USA's TPD-433-M2 of tiny touch HMI.
TPD-433-M2.html
|
CPU
|
32-bit RISC CPU
|
|
Memory Expansion
|
16 MB SDRAM/16 MB Flash
|
|
Real Time Clock (RTC)
|
Yes
|
|
Buzzer
|
Yes
|
|
Rotary Switch (0~9)
|
Yes
|
|
COM1
|
RS-485 (including Self-Tuner)
|
|
COM2
|
RS-232 (3-pin)
|
|
Ethernet
|
RJ-45 x 1, 10/100 Base-TX
|
|
USB 1.1 Client
|
Firmware updates only
|
|
MMI (Main Machine Interface)
|
|
LCD
|
4.3" TFT(Resolution 480 X 272 X 16), defective pixels <= 3
|
|
Backlight Life
|
20,000 hours
|
|
Brightness
|
400 cd/m2
|
|
Touch Panel
|
Yes
|
|
LED Indicator
|
Yes
|
|
Reset Button
|
Yes
|
|
Powered from Terminal Block
|
+12 ~ 48 VDC
|
|
Powered from PoE
|
IEEE 802.3af, Class1 (48 V)
|
|
Power Consumption
|
2.5 W
|
|
Dimensions (W x L x H)
|
140 mm x 87 mm x 42 mm
|
|
Installation
|
Wall Mount
|
|
Ingress Protection
|
Front Panel: IP40
|
|
Operating Temperature
|
-20 ~ +50C
|
|
Storage Temperature
|
-30 ~ +80 C
|
|
Ambient Relative Humidity
|
10 ~ 90% RH, non-condensing
|
|
|
|
|
