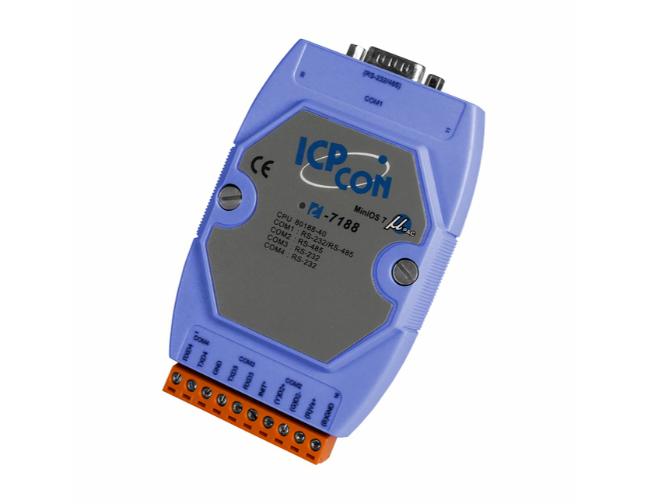

ICP DAS I-7188_DOS_512 - Embedded Controller with Developing Tool Kit, 512K Flash, Datalight's ROM/DOS & Minios7 Utility with 40
by ICP DAS
|
|
|
|
I-7188_DOS_512_SUMMARY.html
I-7188/DOS/512 - Embedded Controller with Developing Tool Kit, 512K Flash, Datalight's ROM/DOS & Minios7 Utility with 40 Mhz CPU. Supports operating temperatures between -25 to 75°C.
|
|
|
I-7188_DOS_512_DESCRIPTION.html
I-7188/DOS/512 - Embedded Controller with Developing Tool Kit, 512K Flash, Datalight's ROM/DOS & Minios7 Utility with 40 Mhz CPU. Supports operating temperatures between -25 to 75°C.
I-7188_DOS_512.html
| CPU |
| CPU |
80188 (40MHz) |
| SRAM |
256K Bytes |
| Flash |
512K Bytes; Erase unit is one sector (64K
bytes); 100,000 erase/write cycles. |
| EEPROM |
2048 Bytes (8 block, each block contains
256byte)
Data retention > 100 years; 1,000,000 erase/write cycles |
| NVRAM |
31 Bytes (battery backup, data valid up to 10
year) |
| RTC (real time clock) |
Seconds, minutes, hours, date of the month;
month, year, valid up from 1980 to 2079 |
| 64-bit Hardware Serial Number |
No |
| Build-in Watchdog Timer |
Yes |
| Communication Interface |
| COM1 |
RS-232 or RS-485 ( jumper select(JP1), default is RS-232)
RS-232
(TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND)
RS-485 (D1+, D1-)
16 bytes FIFO |
| COM2 |
RS-485 (D2+, D2-), 16 bytes FIFO |
| COM3 |
RS-232 (TXD3, RXD3, GND), 1 byte FIFO |
| COM4 |
RS-232 (TXD4, RXD4, GND); Program download port;
Can be used as general purpose RS-232 port, 1 byte FIFO |
| Communication speed |
| All ports |
115.2K bps max |
| Digital Input/Output |
| Digital Input |
No |
| Digital Output |
No |
| LED Display |
| 5 Digits Seven Segment Display |
Yes (for 7188D) |
| Red LED |
Yes |
| I/O expansion bus |
| I-7188 |
No |
| I-7188D |
No |
| Dimensions |
| I-7188 |
119mm x 72mm x 33mm |
| I-7188D |
119mm x 72mm x 33mm |
| Operating Environment |
| Operating Temperature |
-25C to +75C |
| Storage Temperature |
-40C to +80C |
| Humidity |
5~90%, non-condensing |
| Power |
| Protection |
Power reverse polarity protection |
| Power requirement |
10 to 30VDC |
| Power consumption |
I-7188: 2.0W
I-7188D: 3.0W |
|
|
|
|
