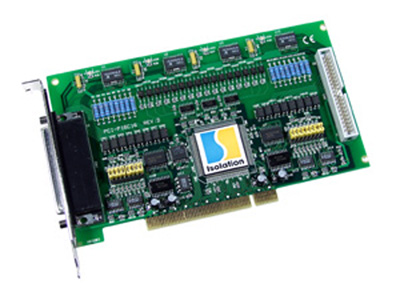

ICP DAS PCI-P16C16 - 16- channel isolated digital input, 16- channel open collector output
by ICP DAS
|
|
|
|
16 Channel Isolated Digital Input, 16 Channel Open-Collector Output Board. Includes CA-4037W cable and two CA-4002 D-Sub connectors
|
|
|
| Open-Collector (NPN) Outputs |
| Load current |
600mA (Max) per channel |
| Load Voltage |
30Vdc |
| Isolated Inputs |
| Type |
None- polarized opto-isolated (PC-814) |
| Input voltage |
AC/DC 5-24V or VAC (50 - 1khz) |
| Input impedance |
1.2 Kohm |
| Response time |
20u Sec (Without filter)
22m Sec ( with filter) |
| Isolated |
500v channel-channel / channel - ground |
| General Environment |
| Operation Temperature |
0° to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Humidity |
0 to 90% non-condensing |
| Dimensions |
180mm x 105mm |
|
|
|
|
