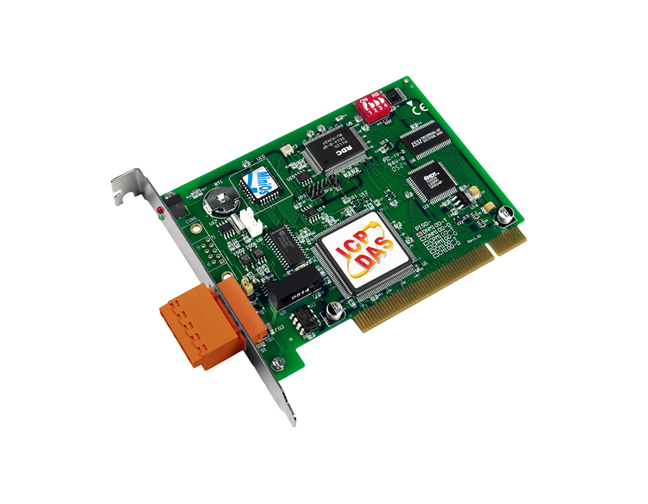

PISO-DNM100-T - 1 Port Intelligent DeviceNet Master Communication Board, 5 pin Screw Terminal Connector by ICP DAS
|
|
|
1 Port Intelligent DeviceNet Master Communication Board with DeviceNet Firmware Inside
|
|
|
PISO-DNM100 can represent an economic solution of DeviceNet applications and be a DeviceNet master device on DeviceNet networks. It is a "Predefined Master-Slave Connection Set". PISO-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.
PISO-DNM100 uses the new CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and a re-transmission function. It can be installed on almost any windows-based system, for example Windows 98, Windows 2000 and Windows XP Operating Systems. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, PISO-DNM100 is developed for this purpose.
- Applications:
- Laboratory Equipment and Research
- Industrial Machinery
- Building Automation
- Medical
- Maritime
- Restaurant Applications
Bus Interface |
Type |
PCI bus, 5 V, 33 MHz, 32-bit, plug and play |
Board No. |
By DIP switch |
CAN Interface |
Controller |
NXP SJA1000T with 16 MHz clock
Microprocessor inside with 80186 80MHz |
Transceiver |
NXP 82C250 |
Channel number |
1 |
Connector |
9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, N/A for others) |
Baud Rate (bps) |
125 k, 250 k, 500 k |
Transmission Distance (m) |
Depend on baud rate (for example, max. 1000 m at 50 kbps ) |
Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
Terminator Resistor |
Jumper for 120 Ω terminator resistor |
Specification |
ISO-11898-2, CAN 2.0A and CAN 2.0B |
Protocol |
DeviceNet Volumn I ver2.0, Volumn II ver2.0 |
LED |
Round LED |
Green LED, Red LED |
Software |
Driver |
Windows 2K/XP/7/8 (32-bit/64-bit OS) |
Library |
VB 6.0, VC++ 6.0, BCB 6.0, Visual Studio .NET |
Power |
Power Consumption |
300 mA @ 5 V |
Mechanism |
Dimensions |
138mm x 22mm x 92mm (W x L x H) |
Environment |
Operating Temp. |
0 ~ 60 ℃ |
Storage Temp. |
-20 ~ 70 ℃ |
Humidity |
5 ~ 85% RH, non-condensing |
|
