ICP DAS M-7011D - 1-channel Analog Input, 1-channel Digital Input, and 2-channel Digital Output data acquisition module with dis
by ICP DAS
|
|
|
|
1-channel Analog Input, 1-channel Digital Input, and 2-channel Digital Output
data acquisition module with display. Supports Thermocouple Input, Voltage Input
and Current Input. Communicable over Modbus RTU and RS-485. Supports operating
temperatures between -25 to 75°C (-13F ~ 167F).
|
|
|

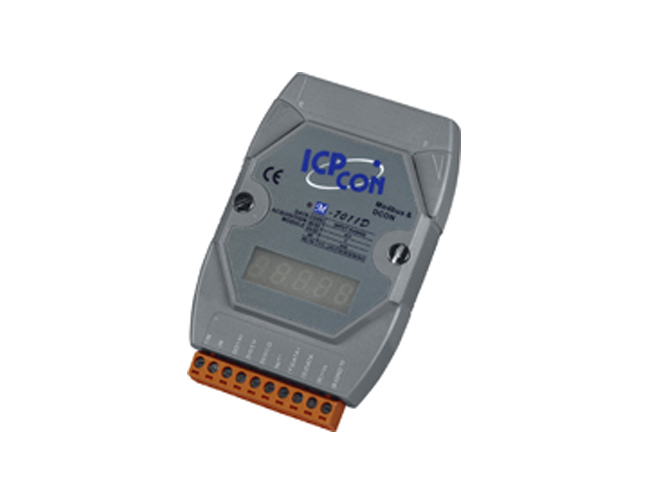

The M-7011D data acquisition Remote I/O module is a thermocouple input,
voltage and current input module. It comes with a LED display, which works as
Power/ Communication indicator. It provides cost-effective protection and
conditioning for a wide range of valuable industrial control signals and
systems. We provide free DCON utility which can help users to configure and test
M-7011 modules. Plenty of library functions and demo programs are provided to
let users develop programs easily under Windows, Linux and DOS operating
systems. Users may mount the modules on a DIN rail, panel or wall. Modules have
a screw-terminal block to connect to the signals.
|
Analog Input |
|
Input Channels |
1 |
|
Input Type |
±15mV, ±50mV, ±100mV,± 500mV , ±1V,± 2.5V
± 20mA (requires optional external 125 ohm resistor)
Thermocouple( Type J, K, T, E, R, S, B, N, C) |
|
Resolution |
16-bit |
|
Sampling Rate |
10 Samples/ Second |
|
Accuracy |
±0.05% |
|
Zero Drift |
±0.5uV/°C |
|
Span Drift |
25ppm/°C |
|
Band Width |
5.24Hz |
|
Common Mode Rejection |
150dB |
|
Normal Mode Rejection |
100dB |
|
Input Impedance |
20M Ohms |
|
Intra-module Isolation, Field to Logic |
3000 VDC |
|
Digital Input |
|
Channels |
1 |
|
Logic Level 0 |
+1V max |
|
Logic Level 1 |
+3.5V to 30V |
|
Max Input Frequency |
50Hz |
|
Min. Pulse Width |
1 ms |
|
Digital Output |
|
Channels |
2 |
|
Output Type |
Sink, Open Collector to 30V |
|
Output Load |
30mA max. per channel |
|
Power dissipation |
300 mW |
|
Interface |
|
Interface |
RS-485, Modbus RTU |
|
Format |
N, 8, 1 |
|
Baudrate |
1200 ~ 115200 bps |
|
LED Display |
| 1
LED |
as Power/ Communication indicator |
| 4
1/2 digits |
for I-7011D |
|
Power |
|
Input |
+10 to +30 Vdc |
|
Power Consumption |
0.9 W (I-7011) / 1.5W(I-7011D) |
|
Protocol |
|
Support Modbus and DCON Protocol |
Yes |
|
Watchdog |
Yes, Module, Communication (Programmable) |
|
Environment |
|
Operating temperature |
-25°C to 75 °C |
|
Storage temperature |
-30°C to 75 °C |
|
Humidity |
5 to 95%, non-condensing |
|
Thermocouple Type |
Range (°C) |
|
J |
-210 ~ +760 |
|
K |
-270 ~ +1372 |
|
T |
-270 ~ +400 |
|
E |
-270 ~ +1000 |
|
R |
0 ~ +1768 |
|
S |
0 ~ +1768 |
|
B |
0 ~ +1820 |
|
N |
-270 ~ 1300 |
|
C |
0 ~ 2320 |
|
|
|
|
