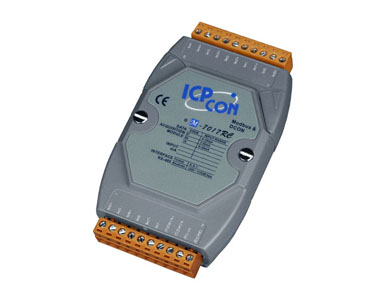

M-7017RC - 8 Channel Voltage Input & Current Input, Analog Input Data Acquisition Module, communicable over Modbus RTU and RS-48
by ICP DAS
|
|
|
|
8 Channel Voltage Input & Current Input, Analog Input Data Acquisition
Module, communicable over Modbus RTU and RS-485, Current Input Version. Supports
operating temperatures between -25°C to 75°C (-13°F ~ +167°F).
|
|
|
The M-7017RC device is a network data acquisition and control modules that
support Modbus RTU. They can be remotely controlled using a set of commands
called DCON protocol. With the Modbus RTU protocol, it can easily communicate
with most popular SCADA/ HMI software and PLCs.
|
Communication |
|
Interface |
RS-485 |
|
Format |
N, 8, 1), (N, 8, 2), (E, 8, 1), or (E, 8, 2) |
|
Baud Rate |
1200 ~ 115200 bps |
|
Protocol |
Modbus RTU, DCON |
|
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
|
LED Indicators/Display |
|
System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
|
I/O LED Indicators |
- |
|
7-Segment LED Display |
- |
|
Isolation |
|
Intra-module Isolation, Field-to-Logic |
3000 VDC |
|
EMS Protection |
|
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
|
EFT (IEC) 610004-4) |
±4kV for Power Line |
|
Surge (IEC 610004-5) |
±0.5 kV for Power Line |
|
Power |
|
Reverse Polarity Protection |
Yes |
|
Input Range |
10~30VDC |
|
Consumption |
1.3 W |
|
Mechanical |
|
Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
|
Installation |
DIN-Rail or Wall Mountable |
|
Environment |
|
Operating Temperature |
-25°C to +75°C (-13°C ~ +167°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F ~ +185°F) |
|
Humidity |
10 to 95%, Non-condensing |
I/O Specifications
|
Analog Input |
|
Channels |
8 |
|
Wiring |
Differential |
|
Input Range |
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA |
|
Resolution |
16-bit |
|
Accuracy |
Normal Mode |
0.1 % |
|
Fast Mode |
0.5 % |
|
Sampling Rate |
Normal Mode |
10 Hz |
|
Fast Mode |
60 Hz |
|
Input Impedence |
Voltage |
- |
|
Current |
125 Ω |
|
Surge Strength |
±200 VDC |
|
Common Voltage |
- |
|
Individual Channel Configuration |
- |
|
Overvoltage Protection |
- |
|
Overcurrent Protection |
Yes, 50 mA at 110 VDC |
|
Virtual Channel to Channel Isolation |
Yes, 400 VDC |
|
Open Wire Detection for 4 ~ 20 mA |
Yes |
|
