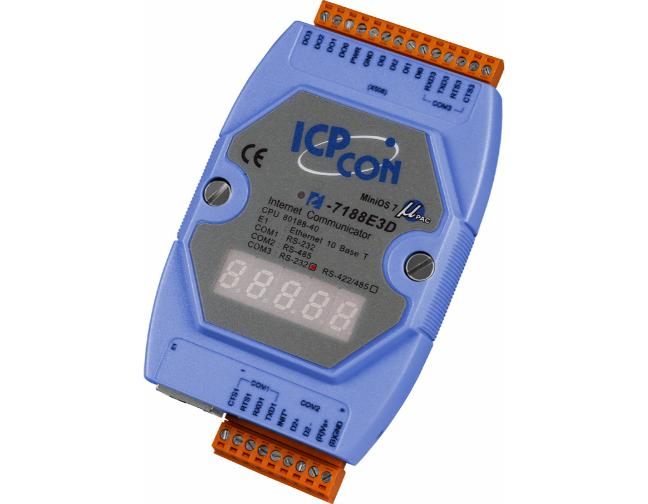

ICP DAS I-7188E3D-232 - Serial to Ethernet Controller with one Ethernet Port, two RS-232 Ports, one RS-485 Port and DIO
by ICP DAS
|
|
|
|
I-7188E3D-232_SUMMARY.html
- Ideal for embedded Ethernet control or serial to Ethernet conversion
- Compact form factor
- AMD 80188-40 embedded CPU
- ISaGRAF IEC-1131 development runtime equipped** (I-7188EG)
- ModBus TCP/IP & RTU compatible** (requires "-MTCP" firmware)
- Supports a variety of TCP/IP features:
- TCP, UDP, IP, CMP, ARP, and RARP
- 10BASE-T NE2000 compatible Ethernet Controller
- Reloadable Operating Software
- Remote Configuration
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1K QUEUE input buffer
- COM port: COM1, COM2,
- Built-in RTC, NVRAM, EEPROM
- User defined 14 I/O lines
- Built-in I/O expansion bus interface
- Internal expansion bus allows for multiple capability configurations
- Built-in self-tuner ASIC controller on RS-485 port
- 7-segment LED display for:
- I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D and I-7188E8D
- Built-in MiniOS7
- Program download port: COM1 or Ethernet Port
|
|
|
I-7188E3D-232_DESCRIPTION.html
The I-7188E3D-232 is similar to the I-7188EX. Since there are too many configurations for the I-7188E series product, OEM or ODM version is welcome. Can be used as Addressable Ethernet to RS-232/485/422 Converter.
I-7188E3D-232.html
| CPU | | CPU | 80188, 40MHz or compatible | | SRAM | 384K bytes | | Flash Memory | 512K bytes | | EEPROM | 2K Bytes | | Built-in Watchdog Timer | Yes | | Communication Interface | | COM1 | RS-232 (TXD, RXD, RTS, CTS, GND) | | COM2 | RS-485 (D2+, D2-) | | COM3 | RS-232 (TXD, RXD, RTS, CTS, GND) | | Ethernet Port | 10BASE-T NE2000 compatible Ethernet Controller | | COM Port Formats | | Data bit | 7, 8 | | Parity | Even, Odd, None | | Stop bit | 1 | | Baud Rate | 115200 bps Max. | | LED Display | | 5-Digit 7 Segment LED Display | Yes (for I-7188E2D only) | | System LED Indicator | Yes | | Digital Input | | Input Channels | 4 | | On Voltage Level | +3.5V/DC to +30V/DC Max. | | Off Voltage Level | +1V/DC Max. (Connect to GND) | | Digital Output | | Output Channels | 4 | | Output Type | Open-collector | | Max Load Current | 100mA | | Load Voltage | +30V/DC Max. | | Dimensions | | I-7188E3(D)-232 | 123mm x 72mm x 33mm | | Operating Environment | | Operating Temperature | -25C to +75C | | Storage Temperature | -40C to +80C | | Power | | Protection | Power reverse polarity protection | | Required Supply Voltage | +10 to +30V/DC (non-regulated) | | Power consumption | 2W for I-7188E3-232
3W for I-7188E3D-232 |
|
|
|
|
