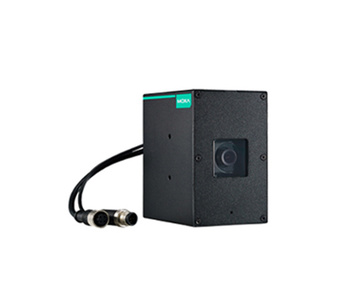

Moxa VPort P06HC-1MP-M12-CAM36 - EN 50155 compliant, HD, H.264/MJPEG square IP camera, 3.6 mm lens, M12 Ethernet connector
by MOXA
|
|
|
|
-
Compliant with EN 50121-3-2 and essential sections of EN 50155, -25 to 55°C
operating temperature
-
1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to
30 frames/second
-
Flush mounting for hiding inside a panel, such as a wall or ceiling
-
Up to 3 independent video streams (2 H.264/1 MJPEG)
-
DynaStream™ supported for maximized network efficiency
-
CBR Pro™ supported for high image quality in limited bandwidth
transmissions
Supports DHCP Opt 66/67 for auto-configuration
1 built-in microphone for audio input, and 1 digital input for external
sensor
ONVIF supported for standardization and interoperability
|
|
|
The VPort P06HC-1MP-M12 square-type IP cameras provide an HD (720P, 1280 x
720) video image, and feature 3 H.264/MJPEG video streams, giving them the
versatility and ruggedness to excel in many different installations and
environments for IP video surveillance applications. In addition, the cameras
comply with a portion of EN 50155 specifications, covering operating
temperature, power input voltage, surge, ESD, and vibration, making them
suitable for a variety of industrial applications, and feature a -25 to 55°C
operating temperature, a rugged M12 Ethernet port, 1 built-in microphone, 1
digital input, PoE power inputs, IP66 rain and dust protection, and a selectable
lens.
Excellent Image Quality
The VPort P06HC-1MP-M12 is equipped with a cutting-edge CMOS sensor, which
provides excellent high resolution video images at 1280 x 800 pixels and covers
larger areas than legacy analog cameras.
Rugged Hardware Design
The VPort P06HC-1MP-M12’s hidden form factor makes it ideal for applications
requiring a hidden camera. It is compliant with EN 50121- 3-2 (EMC), EN 61373
for shock and vibration, and essential sections of EN 50155, with operating
temperature from -25 to 55°C (tested for 10 min. at +15°C over the max. at
70°C), without a fan or other cooling equipment.
High Video Performance
The VPort P06HC-1MP-M12 is designed to provide both H.264 and MJPEG video
streams and transmit a maximum of 3 independent video streams (2 H.264, 1 MJPEG)
simultaneously. In addition, Moxa’s DynaStream™ function allows you to change
the video frame rate automatically, which can help you control your network
bandwidth budget and ease network system management. The CBR Pro™ function can
guarantee the lowest packet loss in limited bandwidth transmissions, which
ensures that images will not exhibit the mosaic effect. A DHCP Opt66/67
auto-configuration mechanism simplifies the workload of mass installation and
maintenance by backing up the configuration on a TFTP server.
|
• Camera |
|
Sensor |
1/2.7” HD progressive scan CMOS |
|
Lens |
3.6 mm megapixel fixed focal length lens |
|
Angle of View |
• 3.6 mm, F1.6: Diagonal 120°, Horizontal 96°, Vertical 56° |
|
Minimun Illumination |
0.2 Lux at F=1.2 |
|
Synchronization |
Internal |
|
White Balance |
ATW/AWB |
|
Auto Electronic Shutter |
1/30 to 1/25000 sec |
|
Electronic Shutter |
Auto |
|
S/N Ratio |
50 dB (Gamma, Aperture, AGC, OFF; DNR ON) |
|
DNR |
Built-in DNR |
|
WDR |
Level 1-3 |
|
AGC Control |
2X, 4X, 8X, 16X |
|
Flickerless Control |
Automatic/50 Hz/60 Hz mode |
|
Auto Exposure |
Level ±5 |
|
Image Rotation |
Flip, Mirror, and 180° rotation |
|
Image Setting |
Manual tuning with brightness and contrast |
|
• Video |
|
Video Compression |
H.264 (ISO/IEC 14496-10) or MJPEG |
|
Video Outputs |
Via Ethernet |
|
Video Streams |
Maximum of 3 video streams
• Stream 1: H.264, 1280 x 800 resolution (max.)
• Stream 2: H.264, 720 x 576 resolution (max.)
• Stream 3: MJPEG, 720 x 576 resolution (max.) |
|
Note |
Streams 2 and 3 must be set to the same resolution |
|
Video Resolution and FPS (frames per second) |
 |
|
Video Viewing |
• DynaStream™ supported for automatic frame rate adjustment
• CBR Pro™ for good image quality in limited bandwidth transmission
• 3 privacy mask areas configurable
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On s |
|
• Audio |
|
Audio Inputs |
1, built-in microphone |
|
Audio Format |
Mono, PCM (G.711) |
|
• Network |
|
Protocols |
TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP,
QoS,IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP, DHCP, OPT66/67 |
|
Ethernet |
1 10/100BaseT(X) isolated Ethernet port, 4-pin M12 D-code female
connector |
|
• GPIO |
|
Digital Inputs |
1, max. 8 mA, isolated 5-pin M12 connector
High: +13 V to +30 V; Low: -30 V to +3 V |
|
• Power
Requirements |
|
Input |
Power-over-Ethernet (IEEE 802.3af) |
|
• Physical
Characteristics |
|
Housing |
IP66 metal housing with transparent cover |
|
Dimensions |
109 x 68 x 90 mm (4.29 x 2.68 x 3.54 in) |
|
Installation |
Flush mounting |
|
• Alarms |
|
Intelligent Video |
Camera tamper |
|
Video Motion Detection |
3 independently configurable motion areas |
|
Scheduling |
Daily repeat timing schedule |
|
Imaging |
JPEG snapshots for pre/trigger/post alarm images |
|
Custom Alarms |
HTTP event servers for setting customized alarm actions |
|
Email/FTP Messaging |
Automatic transfer of stored images via email or FTP as event-triggered
actions |
|
Pre-alarm Buffer |
12 MB video buffer for JPEG snapshot images |
|
• Security |
|
Password |
User level password protection |
|
Filtering |
By IP address |
|
Encryption |
HTTPS, SSH |
|
• Environmental
Limits |
|
Operating Temperature |
-25 to 55°C (-13 to 131°F) |
|
Storage Temperature |
-40 to 75°C (-40 to 167°F) |
|
Ambient Relative Humidity |
5 to 95% (non-condensing) |
|
Conformal Coating |
Available on request |
|
Altitude |
2000 m |
|
• Standards
and Certifications |
|
Safety |
UL 60950-1 |
|
EMI |
FCC Part 15, CISPR (EN 55022) class A |
|
EMS |
EN 61000-4-2 (ESD), Level 3,
EN 61000-4-3 (RS), Level 3,
EN 61000-4-4 (EFT), Level 3,
EN 61000-4-5 (Surge), Level 3,
EN 61000-4-6 (CS), Level 3,
EN 61000-4-8 |
|
Rolling Stock |
EN 50155* |
|
Note |
*Complies with a portion of EN 50155 specifications. Please contact Moxa
or a Moxa distributor for details. |
|
Shock |
IEC 61373 |
|
Freefall |
IEC 60068-2-32 |
|
Vibration |
IEC 61373 |
|
Note |
Please check Moxa’s website for the most up-to-date certification
status. |
|
• Warranty |
|
Warranty Period |
5 years |
|
Details |
See www.moxa.com/warranty |
|
• Minimum
Viewing System Requirements |
|
CPU |
Pentium 4, 2.4 GHz |
|
Memory |
512 MB of memory |
|
OS |
Windows XP/2000 with SP4 or above, Windows Vista, Windows 7 |
|
Browser |
Internet Explorer 9.x or above |
|
Multimedia |
DirectX 9.0c or above |
|
• Software
Development Kit |
|
VPort SDK PLUS |
Includes CGI commands, ActiveX Control, and API library for customized
applications or system integration for third-party developers (the
latest version of SDK is vailable for download from Moxa’s website). |
|
Standard |
ONVIF |
|
|
|
|
