ICP DAS PISO-DNS100U-D - 1 Port Intelligent DeviceNet Multi-Slave Board with 9-pin D-sub connector
by ICP DAS

Name: ICP DAS PISO-DNS100U-D - 1 Port Intelligent DeviceNet Multi-Slave Board with 9-pin D-sub connector
Brand: iComTech
SKU: PISO-DNS100U-D
Price: 578.0 USD

Write a review

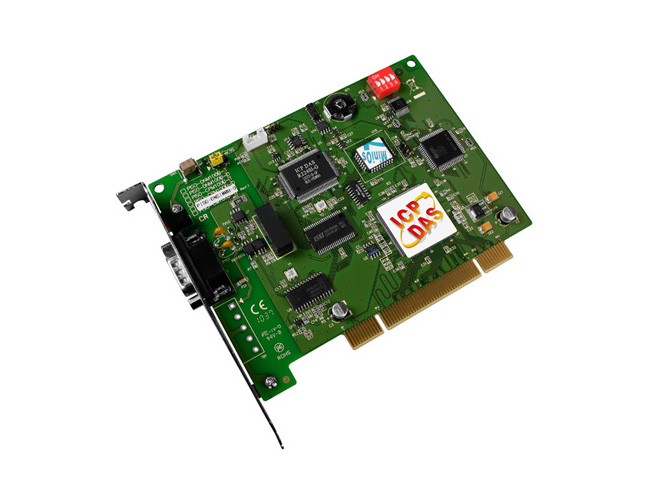

The PISO-DNS100 has completed DeviceNet slave function according to DeviceNet Group 2 only server. With the built-in 80186 80M Hz CPU, this card can be applied in high transmission applications. The amazing function is that 10 slave nodes are implemented inside the PISO-DNS100. It supports up to 512 bytes of input & 512 bytes output data. DeviceNet Baud rate of 125-500 kbits/s & MACID can be set via utility setting. The PCI card also has an optically isolated DeviceNet interface.

Mfg SKU # :

PISO-DNS100U-D

List Price :

$589.00

Our Price :

$578.00

Description
Specification
Datasheet

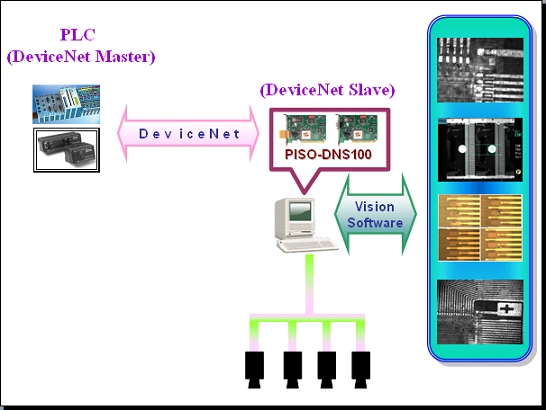

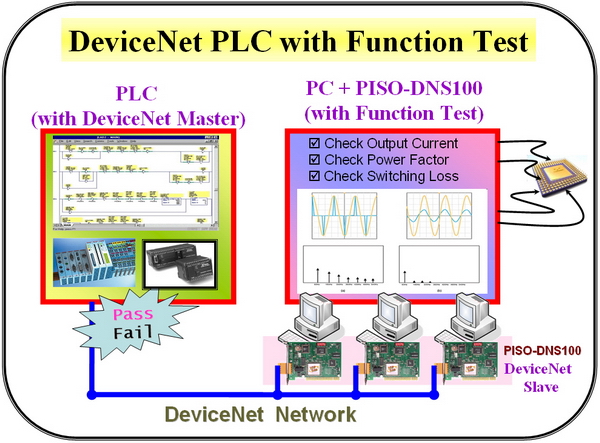

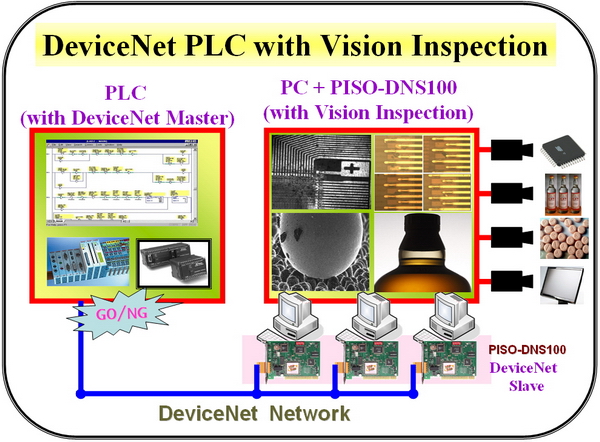

Applications

Industrial Machinery
Building Automation
Medical
Maritime
Restaurant Appliances
Laboratory Equipment & Research

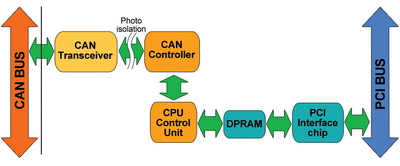

Hardware Features

Firmware Features

Firmware Feature	Specifications
DeviceNet Version	DeviceNet Specification Volume I & II, Release 2.0
Number of Slave Nodes	10(Max) nodes inside the board
Baud Rate	125K, 250K, 500K
Support Message Groups	Group 2 only Server
UCMMs	Not Support
I/O Operating Modes	Poll, Bit-Strobe, Change of State/ Cyclic
No. of Fragment I/O	up to 512 bytes of input & 512 bytes output data
MAC ID Setting	Programmable
Baud Rate Setting	Programmable

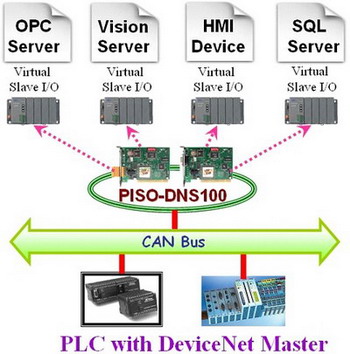

Virtual Slave concept

Toolkit

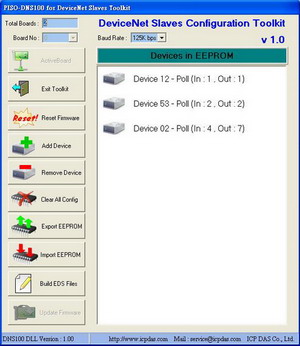

The software utility includes various useful functions. These functions help users to manage and configure the DeviceNet virtual slave devices. It helps the users to develop the DeviceNet virtual slave station projects easily and quickly. The users can also develop another toolkit on your own purpose.

LabView Tool

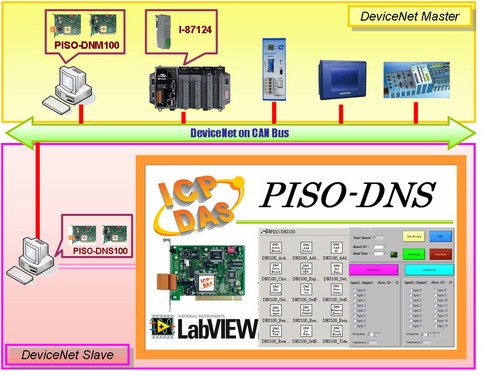

In order to apply the PISO-DNS100 to DeviceNet network with NI LabVIEW, we provides a LabVIEW 8.0 toolkit for the purpose. It is a useful tool to develop the DeviceNet Slave application in NI LabVIEW environment by using PISO-DNS100. It is easy to use and can help user to rapidly reduce their program development cycle. Download

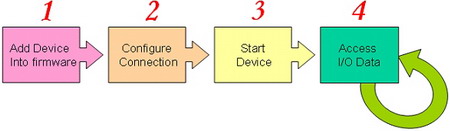

Establish Connection Flowchart

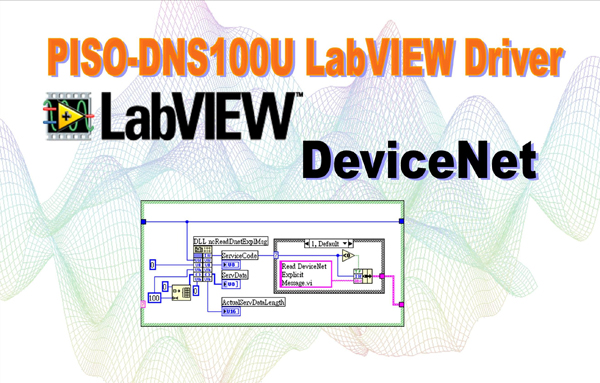

DeviceNet For LabVIEW Application Tool

In order to develop complex DeviceNet applications, we provide a LabVIEW driver for this purpose. The PISO-DNS100(U) LabVIEW driver is the function reference to the DeviceNet slave. We provide many useful VI functions in the LabVIEW environment. We also have the "DeviceNet Slave Utility" to configure the DeviceNet hardware in your PC. The users not only operate easily and develop application rapidly, but also reduce the complexity of applications. The users can communicate with the remote DeviceNet master in a few simple steps and need not to know about the detail of the DeviceNet protocol. It is the best tool to develop various distributed systems and other industrial applications software on DeviceNet network.

Model Name	PISO-DNS100U-D
Bus Interface
Type	Universal PCI supports both 5 V and 3.3 V PCI bus
Board No.	By DIP switch
CAN Interface
Controller	NXP SJA1000T with 16 MHz clock Microprocessor inside with 80186 80MHz
Transceiver	NXP 82C250
Channel number	1
Connector	9-pin male D-Sub (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+, N/A for others)
Baud Rate (bps)	125 k, 250 k, 500 k
Transmission Distance (m)	Depend on baud rate (for example, max. 1000 m at 50 kbps )
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminator Resistor	Jumper for 120 Ω terminator resistor
Specification	ISO-11898-2, CAN 2.0A
Protocol	DeviceNet Volumn I ver2.0, Volumn II ver2.0
LED
Round LED	Status LED, ERR LED
Software
Driver	Windows 2K/XP
Library	VB 6.0, VC++ 6.0, BCB 6.0
Power
Power Consumption	300 mA @ 5 V
Mechanism
Dimensions	138mm x 22mm x 105mm (W x L x H)
Environment
Operating Temp.	0 ~ 60 ℃
Humidity	5 ~ 85% RH, non-condensing
Storage Temp.	-20 ~ 70 ℃
