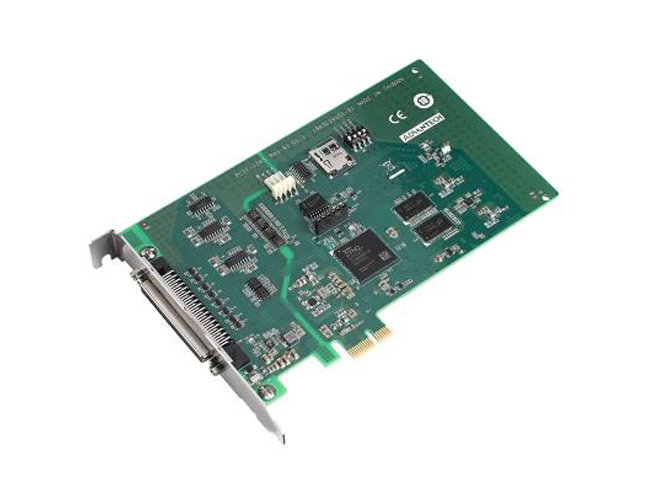

Advantech PCIE-1245E-AE
PCIE-1245/1245E series are 4-axis motion control PCI Express cards which are designed for electrical machine automation and traditional machine automation wide applications. The board is equipped with SoftMotion algorithm inside to perform the motion trajectory and timing control to meet the synchronization in precise movement. The Advantech SoftMotion features synchronization control in gantry, electronic gear and dynamic PWM following; interpolation in linear, circular and helical (spiral) curve; continuous movement in buffering piecewise trajectory to realize; cutting movement in tangential following to ensure the Z-axes is tangent to X-Y curve; high-speed position compare and triggering with any 3rd party machine vision solution. PCIE-1245/1245E are applied to “MotionNavi API” architecture which is an unified user programming interface. Programmer can benefit from integrating any Advantech SoftMotion controller without changing the application code in large scale. This architecture can save the effort of application maintenance and upgrade.
