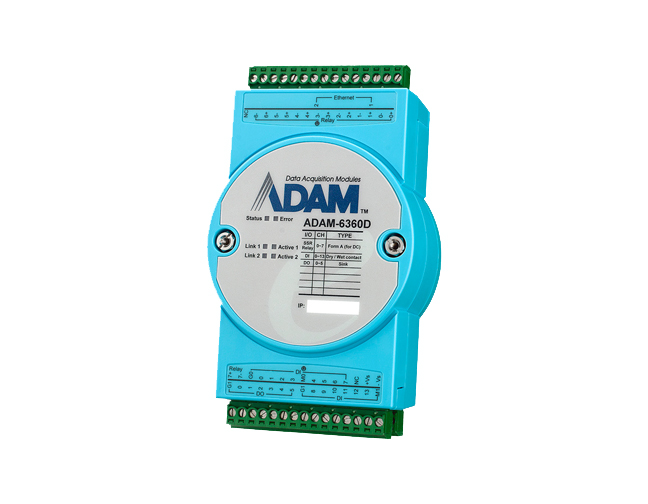

Advantech ADAM-6360D - 8Relay(SSR)/14DI/6DO IoT Modbus/OPC UA Ethernet Remote I/O
by Advantech
|
|
|
|
- OPC UA empowers Modbus I/O users to access the industrial IoT world
- OPC UA I/O links SCADA and the cloud without the need for gateways, accelerating OT and IT convergence
- Hardware and software double security levels to prevent being hacked
- Cost-effective: high I/O density and daisy-chaining solution saves cost
|
|
|
Advantech ADAM-6300 series, ADAM-6360D, is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.
| General |
| Power Input* |
10 ~ 30 VDC |
| Isolation Protection* |
2500 VDC |
| Connector* |
Plug-in screw terminal block (I/O and power) |
| Ethernet* |
2-port 10/100 Base-TX (for Daisy Chain) |
| Environment |
| Temperature (Operating)* |
-25 ~ 70°C (-13~158°F) |
| Storage Temperature |
-25 ~ 85°C (-13 ~ 185°F) |
Relay Output |
| Channels |
8 x PhotoMOS SPST(Form A) |
| Contact Rating (Resistive and Inductive Load) |
1 A @ 25 °C @ 30 VDC, 0.7 A @ 70 °C @ 30 VDC |
| Isolated Digital Input |
| Channels |
14 |
| Input Voltage |
Dry contact logic 0: close to ground, logic 1: Open. Wet contact logic 0: 0 ~ 3 VDC, logic 1: 10 ~ 30 VDC |
| Isolation Protection |
2,500 VDC |
| Isolated Digital Output |
| Channels |
6 |
| Isolation Protection |
2,500 VDC |
| Output Type |
Sink |
| Sink Current
| 100 mA max./channel |
|
|
