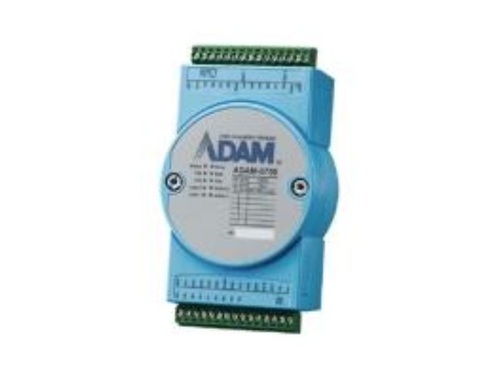

Advantech ESRP-PCS-ADAM6750 - 12DI/12DO Intelligent I/O Gateway with WISE-EdgeLink
by Advantech
|
|
|
|
ESRP-PCS-ADAM6750_SUMMARY.html
- 12ch digital input (counter)/12ch digital output (pulse output)
- An intelligent gateway uploading data from edge to cloud
- Data publishing service by OPC-UA, Modbus, DNP3, BACnet, MQTT & LwM2M
- Data backup by storing data to database and FTP server
- Interfaces: RS-485x2, Ethernet port x 2, 1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
- WISE-EdgeLink software supports multiple PLC protocol drivers for data conversion
| Mfg SKU # : | ESRP-PCS-ADAM6750 |
|
|
|
ESRP-PCS-ADAM6750_DESCRIPTION.html
ESRP-PCS-ADAM6750 intelligent I/O gateways have Linux OS installed and perform multiple tasks at the edge. ADAM-6700 with built-in WISE-EdgeLink supporting 200+ drivers and transmitting data from the edge to cloud, is designed as an integrated solution for factory management and energy monitoring.
| Counter/Encoder Input |
|
|
| Channels |
12 |
|
| Max. Input Frequency |
3 kHz |
|
| Environment |
|
|
| Isolation Voltage |
2,500 VDC |
|
| Operating Temperature |
-40~70 °C (-40~158 °F) |
|
| Ethernet |
|
|
| No. of Ports |
2 |
|
| Speed |
10/100 Mbps |
|
| General |
|
|
| Connectors |
1 X 9-pin plug-in screw terminal, 2 X 15-pin plug-in screw terminal |
|
| Protocol |
OPC-UA Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server |
|
| Hardware |
|
|
| I/O |
2 X RS-485, 1 X Micro USB, 1 X USB 2.0 |
|
| os Support |
Linux |
|
| Storage |
1 X micro SD Slot |
|
| Isolated Digital Input |
|
|
| Channels |
12 |
|
| Input Voltage |
Dry Contact Logic level 1: close to GND Logic level 0: open Wet Contact Logic level 1: 10~30 VDC Logic level 0: 0~3 VDC |
|
| Isolated Digital Output |
|
|
| Channels |
12 |
|
| Output Type |
Sink |
|
| Output Voltage |
0~30 VDC |
|
| Sink Current |
100 mA max./channel |
|
| Power Requirements |
|
|
| Input Voltage |
10~30 VDC |
|
|
|
|
