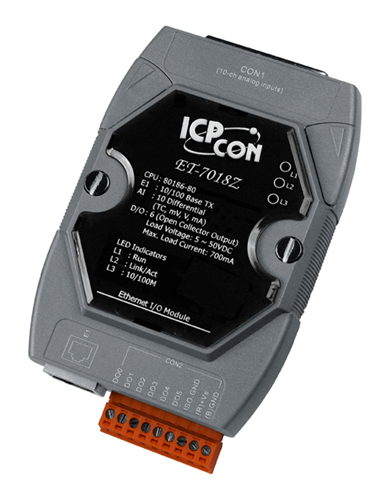

ICP DAS ET-7018Z - 10 channel Thermocouple Input with high voltage protection and 6 isolated output
by ICP DAS
|
|
|
|
10-channel Thermocouple, Analog Input, Current Input, and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output Data Acquisition Module with short cable, communicable over Ethernet and Modbus TCP Protocol. The S2 version comes with DN-1822 Daughter Board and 1.8m Cable. Supports operating temperatures between -25°C to +75°C (-13°F ~ +167°F).
|
|
|
The ET-7018Z is a web-based Ethernet I/O module that features a built-in web server, which allows configuration, I/O monitoring and I/O control by using a regular web browser. With the web HMI function, no programming or HTML skills are needed. User's can create dynamic and attractive web pages for I/O monitoring and I/O control. The ET-7018Z offers easy and safe access for users anytime and anywhere! ET-7018Z also supports Modbus/TCP protocol that makes seamless integration to SCADA software.
The ET-7018Z is a 16-bit, 10-channel differential analog inputs and 6-channel digital ouputs module that provides programmable input range on all analog channels(±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA and thermpocouples) and digital output can be set alarm output. Each analog channel is allowed to configure an individual range and has 240 VAC high over voltage protection

| Software |
| Built-In Web Server |
Yes |
| Web HMI |
Yes |
| I/O Pair Connection |
Yes |
| Communication |
| Ethernet Port |
10/100 Base-TX with Auto MDI/MDI-X |
| Protocol |
Modbus/TCP, Modbus/UDP |
| Security |
ID, Password and IP Filter |
| Dual Watchdog |
Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators |
| L1 (System Running) |
Yes |
| L2 (Ethernet Link/Act) |
Yes |
| L3 (Ethernet 10/100 M Speed) |
Yes |
| PoE Power |
- |
| 2 Way Isolation |
| Ethernet |
1500 VDC |
| I/O |
2500 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal and 8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
+/-4 kV for Power |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
Yes, 10 ~ 30 VDC |
| Powered from PoE |
- |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (W x L x H) |
72 mm x 116 mm x 35 mm |
| Installation |
DIN-Rail or Wall mounting |
| Environmental |
| Operating Temperature |
-25 XC ~ +75 XC |
| Storage Temperature |
-30 XC ~ +80 XC |
| Humidity |
10 ~ 90% RH, non-condensing |
I/O Specifications
| Analog Input |
| Channels |
10 (Differential) |
| Sensor Type |
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125 [ Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) |
| Individual Channel Configuration |
Yes |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Second (Total) |
| Accuracy |
+/-0.1% of FSR or better |
| Zero Drift |
+/-0.5 gV/XC |
| Span Drift |
+/-25 ppm/XC |
| Over Voltage Protection |
240 Vrms |
| Input Impedance |
>300 k[ |
| Common Mode Rejection |
150 dB Min. |
| Normal Mode Rejection |
100 dBV |
| Temperature Output Consistency |
Yes |
| Stable Temperature Output in the Field |
Yes |
| Open Wire Detection |
Yes |
| Virtual Channel to Channel Isolation |
+/-400 VDC |
| Digital Output |
| Channels |
6 |
| Type |
Isolated Open Collector (Sink) |
| Max. Load Current |
700 mA/Channel |
| Load Voltage |
5 VDC ~ 50 VDC |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power-on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| Thermocouple Type |
Range°C |
| J |
-210 ~ +760 |
| K |
-270 ~ +1372 |
| T |
-270 ~ +400 |
| E |
-270 ~ +1000 |
| R |
0 ~ +1768 |
| S |
0 ~ +1768 |
| B |
0 ~ +1820 |
| N |
-270 ~ 1300 |
| C |
0 ~ 2320 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L2(DIN43710) |
-200 ~ +900 |
|
|
