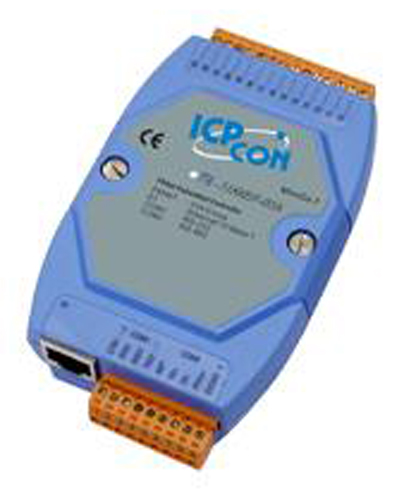

ICP DAS I-7188 EF-016H - FRnet Controller, High Speed
by ICP DAS

High Speed FRnet Equipped Embedded Ethernet Controller

The ICP DAS USA I-7188EFH-016 ethernet controller offers the ultimate in Ethernet equipped, high speed digital data acquisition! The I-7188EFH-016 offers users a multitude of connectivity and networking options in a compact and robust embedded control format. Being equipped with ICP DAS’s FRnet technology, the I-7188EFH-016 is capable of highspeed digital data acquisition in the realm of 1Mbps transmission speed and .7ms scan rates! Programmable in C languages, the I-7188 embedded ethernet controllers offer cutting edge connectivity to almost any industrial control infrastructure!

• Innovative Token-stream communication technology
• Real I/O synchronization capability
• Real deterministic control
• Fixed scan time:
  • 128 input /128 output points @ 2.9mS (-016L version)
  • 128 input /128 output points @ 0.7mS (-016H version)
• Ultra-high speed distributed I/O control capability
• Memory-mapping I/O programming
• Easily programmable
• No transmission protocol required
• No software overhead
• Two-wire cabling
• Ideal for embedded Ethernet control or serial to Ethernet conversion
• Compact form factor
• AMD 80188-40 embedded CPU
• ISaGRAF IEC-1131 development runtime equipped** (I-7188EG)
• ModBus TCP/IP & RTU compatible** (requires "-MTCP" firmware)
• Supports a variety of TCP/IP features, including:
  • TCP
  • UD
  • IP
  • CMP
  • ARP
  • RARP
• 10BASE-T NE2000 compatible Ethernet Controller
• Reloadable Operating Software
• Remote Configuration
• 64-bit hardware unique serial number inside
• COM driver support interrupt & 1K QUEUE input buffer
• COM port: COM1, COM2,
• Built-in RTC, NVRAM, EEPROM
• User defined 14 I/O lines
• Built-in I/O expansion bus interface
• Internal expansion bus allows for multiple capability configurations
• Built-in self-tuner ASIC controller on RS-485 port
• Built-in MiniOS7
• Program download port: COM1 or Ethernet Port
