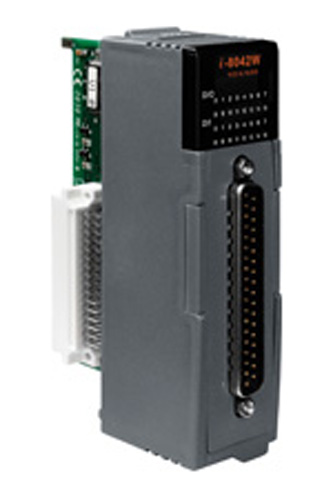

ICP DAS I-8042W - 16-channel Isolated Digital Input & 16-channel Isolated Digital Output Module
by ICP DAS
|
|
|
|
16-channel Isolated Digital Input & 16-channel Isolated Digital Output Module
|
|
|
16-channel Isolated Digital Input & 16-channel Isolated Digital Output Module
I-8040W/41W/42W and I-87040W/41W with DN-37-381-A
| Digital Input |
| Input Channels |
16 (Sink/ source) |
| Input Type |
One common for all Inputs |
| On Voltage Level |
+10V ~ 30V |
| Off Voltage Level |
+4V max |
| Input Impedance |
3K Ohms, 0.33W |
| Intra-module Isolation, Field to Logic |
3750Vrms |
| 4KV ESD Protection |
Contact for each channel |
| Digital Onput |
| Output Channels |
16 (Sink) |
| Output Type |
Open-collector |
| Max Load Current |
100 mA/ Channel |
| Load Voltage |
5Vdc to 30Vdc |
| Intra-module Isolation, Field to Logic |
3750Vrms |
| 4KV ESD Protection |
Contact for each channel |
| LED Display |
| 1 LED as Power Indicator |
| 32 LEDs as Digital Input and Output Indicators |
| Power |
| Power Consumption |
0.3A @ 5V = 1.5W ,+/- 5% For Hardware |
| Environment |
| Operating Temperature |
-25 to 75 °C |
| Storage Temperature |
-30 to 75 °C |
| Humidity |
5 to 95%, Non-condensing |
| Dimensions |
| 30mm x 85mm x 114mm (W x L x H) |
|
|
|
|
