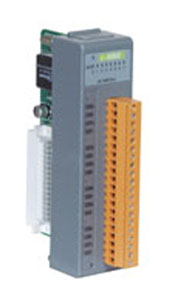

8-channel SSR-AC Output Module
- Parallel I/O Module
- Digital Output Channels: 8
- Form A x 8 channels
- Contact Rating
- AC: 24 to 265Vrms @1.0Arms
- Max. load current: 1.0 Arms
- Min. load current: 10 mArms
- Max. off-state leakage current:
- 0.75mA ( at 100 Vrms 60Hz )
- 1.5mA ( at 200 Vrms 60 Hz )
- 1 cycle surge current: 50A ( 60Hz)
- Max. off-state voltage drop: 2Vrms
- Max. operate time: 1 ms
- Max. release time: 1/2 cycle + 1 ms
- Insulation resistance: Minimum 1,000 MΩ at 500VDC
- Life: long life, maintenance free
- LED indicator for each digital output
- 7000 command compatible
- Supports dual watchdog function
- Support a power-up value for each digital output
- Supports safe value for each digital output
- Power Consumption: 0.8W
