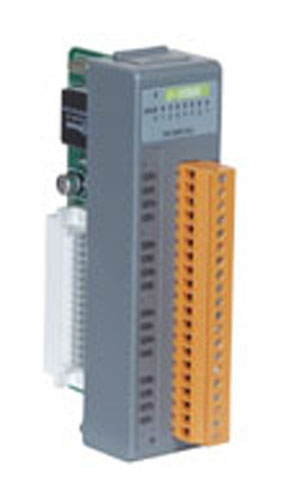

ICP DAS I-8066 - Solid state relay module ( DC type) (8 points)
by ICP DAS
|
|
|
|
8 Channel SSR-DC Output Module
|
|
|
8-channel SSR-DC Output Module
- Parallel I/O Module
- Digital Output Channels: 8
- Form A x 8 channels
- Contact Rating
- Max. load current: 1.0 A
- Min. load current: 1 mA
- Max. off-state leakage current: 0.1 mA ( at 30 VDC )
- 1 cycle surge current: 3A ( 10ms )
- Max. off-state voltage drop: 1.2V
- Max. operate time: 1 ms
- Max. release time: 1 ms
- Insulation resistance: Minimum 1,000 MΩ at 500VDC
- Life: long life, maintenance free
- LED indicator for eachl digital output
- 7000 command compatible
- Supports dual watchdog function
- Supports a power-up value for each digital output
- Supports a safe value for each digital output
- Power Consumption: 0.8W
|
|
|
|
