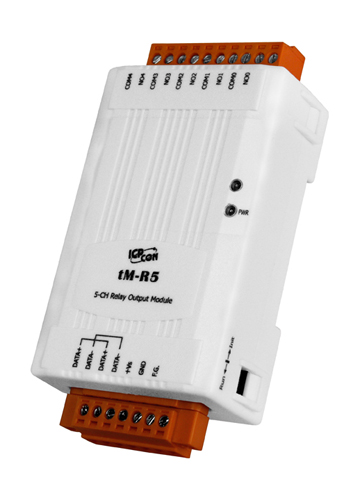

tM-R5 - 5 Channel Relay Outputs
by ICP DAS
|
|
|
|
5-channel Form A Power Relay Output Data Acquisition module, communicable over RS-485, Modbus RTU / ASCII, and DCON protocol. Din rail mountable and operates between -25C and 75C (-13F ~ 167F).
|
|
|
The tM-R5 is a 5 channel relay output data acquisition module. It provides 5 channels of Form A type relay output. Options are provided for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. It comes with Free EZ Data Logger Control and Monitoring software to help you easily set up a data acquisition system.
- Relay Outputs
- Dual Watchdog
- Configurable Power-on Value Settings
- Configurable Safe Value Settings
- Cost-effective
- Wide Operating Temperature Range: -25 ~ +75°C
| Communication |
| Interface |
RS-485 |
| Format |
(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
DCON, Modbus/RTU, Modbus/ASCII |
| Dual Watchdog |
Yes, Module (2.3 seconds), Communication (Programmable) |
| LED Indicators |
| Power |
1 LED as Power Indicator |
| Isolation |
| Intra-module Isolation,Field-to-Logic |
3750 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) |
±4 kV for Power |
| Power Requirements |
| Reverse Polarity Protection |
Yes |
| Powered from Terminal Block |
Yes, 10 ~ 30 VDC |
| Consumption |
1.0 W Max. |
| Mechanical |
| Dimensions (W x L x H) |
52 mm x 98 mm x 27 mm |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
I/O Specifications
| Relay Output |
| Output Channel |
5 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Operating Voltage |
250 VAC or 30 VDC |
| Max. Load Current |
5 A |
| Operating Time |
6 ms |
| Release Time |
3 ms |
| Electrical Life (Resistive load) |
VDE |
5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C |
| 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C |
| UL |
5 A @250 VAC/30 VDC 6,000 ops |
| 3 A @250 VAC/30 VDC 100,000 ops |
| Mechanical Life |
20,000,000 ops at no load (300 ops/minute) |
| Power-on Value |
Yes, Programmable |
| Safe Valu |
Yes, Programmable |
|
|
