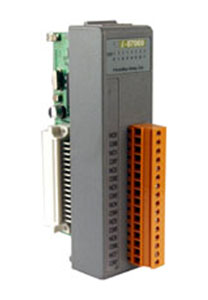

I-87069 has a serial bus (RS-485) communication interface with DCON protocol. It can be plugged into our WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87069 is a Photo Mos Relay Output Module with 8 channels. I-87069 is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.
- Serial I/O Module
- Channels: 8 (Form A)
- Continuous load current:0.13A (peak AC)
- Peak load current: 0.4A
- Output Power dissipation : 0.5W
- Output Off state leakage current : 1uA
- Output On resistance : 23Ohm
- Load voltage : 350V(peak AC)
- Turn On time : 0.7ms (typical)
- Turn Off time : 0.05ms (typical)
- Input / Output Isolation : 5,000VAC optical isolation
- Power consumption: 0.5W
