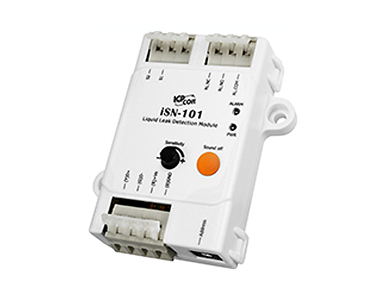

The iSN-101 series Liquid Leak Detection Module is a low-cost, intelligent liquid leak detection device that can be used to directly control Relay Output. No additional conversion module is needed and the iSN-101 can be easily integrated with a variety of monitoring systems to achieve remote alarm and remote device control. The iSN-101 Liquid Leak Detection module can be used to monitor double-core leader cable, with lengths of up to 500 meters, and can be used with both the sensor cable and its included water leakage probe (S3 modules include probe, otherwise sold separately) . If liquid is detected, the controller immediately activates the output relay - the normally open, normally closed passive output signal. The module can be easily integrated with other collection hosts connected to the network. The iSN-101 is suitable for real-time leak detection in critical locations, such as computer room base stations, warehouses, libraries, museums and industrial sites, and also for air handling equipment, refrigeration units, liquid containers, or pump tanks, etc., where there is a need to monitor any leakage of the equipment.
iSN-101 I/O Specifications
Analog Input |
Channels |
1 |
Wiring Cables Length |
500 meters (inlcuding sensor cable) |
Sound Off button |
Button used to stop the audible alarm |
Adjustment of Detection Sensitivity |
25 KΩ ˜ 580KΩ |
System Specifications
Communication |
Interface |
RS-485 |
Format |
N,8,1 / O,8,1 / E,8,1 / N,8,2 |
Baud Rate |
Software Configuration: 1200 ˜ 115200 bps |
Protocol |
Modbus RTU or DCON |
Node Addresses |
96 ˜ 127 for hardware configuration 0 ˜ 255 for software configuration |
LED Indicators |
LED indicators |
1 as Power Indicator, 1 as Alarm Indicator
Relay Output |
Relay Output |
FORM C Relay |
0.5A @ 125 Vac, 2 A @ 30 Vdc |
EMS Protection |
ESD (IEC 61000-4-2) |
±8kV Air for Random Point |
EFT (IEC 61000-4-4) |
±4kV for Power |
Power |
Reverse Polarity Protection |
Yes |
Input Voltage Range |
10 to 30 Vdc |
Consumption |
1.5 W max. |
Mechanical |
Dimensions (W x L x H) |
83 mm x 70 mm x 29 mm |
Installation |
DIN-Rail (DIN version modules) or Screw Mounted (standard modules) |
Environment |
Operating Temperature |
-25 to +75°C |
Storage Temperature |
-30 to +80°C |
Humidity |
10 to 90% RH, non-condensing |
|
