Moxa M-4410 - I/O Module, 4AO, Voltage, 0~10V, 12bit, RTB
by MOXA
|
|
|
|
I/O Module, 4AO, Voltage, 0~10V, 12bit, RTB
|
|
|
I/O Module, 4AO, Voltage, 0~10V, 12bit, RTB
| Analog Outputs |
4 channels |
| Resolution in Ranges |
12 bits, 2.44 mV/bit |
| Output Current Range |
0 to 10 VDC (single-ended) |
| Data Format |
16-bit integer (2’s complement) |
| Accuracy |
• ±0.1%, FSR @ 25°C
• ±0.3%, FSR @ 0°C, 60°C |
| Output Impedance |
Max. 5K ohms |
| Conversion Time |
2 ms for all channels |
| Power Consumption |
60 mA @ 5 VDC |
| Isolation |
I/O to logic (photocoupler isolation) |

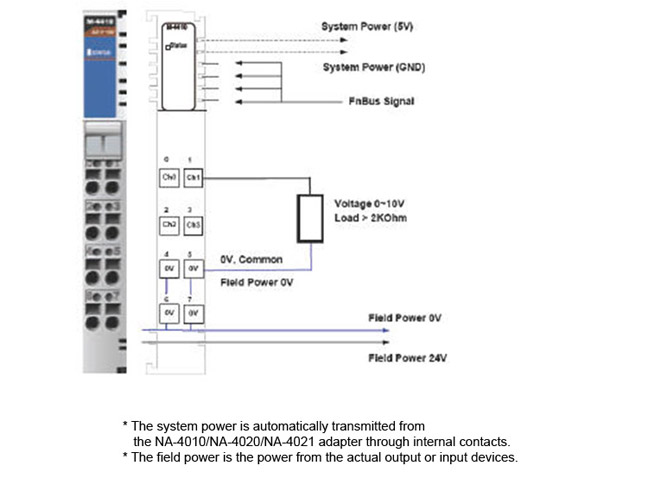

| Wiring |
I/O cable max. AWG14 |
|
|
|
|
