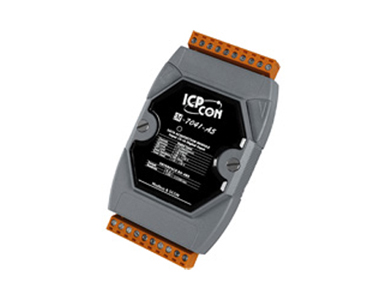

M-7041-A5 - 14-channel High Voltage Input Isolated Digital Input (counter) Module with DCON and Modbus Protocol
by ICP DAS
|
|
|
|
14-channel High Voltage Input Isolated Digital Input (counter) Module with
DCON and Modbus Protocol, supports operating temperatures from -25 ~ +75°C
|
|
|
The M-7041-A5 provides 14 channels for high voltage digital input, each of
which features photocouple isolation. The input voltage level could be as high
as 150V. In addition, either sink- or source-type digital input can be selected
via wire connections, and all channels are able to be used as 16- bit counters.
4 kV ESD protection and 3750 VDC intra-module isolation are standard. The
M-7041-A5 support both the Modbus RTU and DCON protocols, which can be confi
gured via software.
- 150V High Voltage Digital Inputs
- Sink- or Source-type Digital Inputs
- Photocouple Isolation
- All Channels Can Be Used As 16-bit Counters
- 4 kV ESD Protection
- 3750 VDC Isolation Voltage
- Built-in Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
|
Communication |
|
Interface |
RS-485 |
|
Format |
N, 8, 1 |
|
Baud Rate |
1200 ~ 115200 bps |
|
Protocol |
Modbus RTU, DCON |
|
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
|
LED Indicator/Display |
|
System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
|
I/O LED Indicator |
- |
|
Isolation |
|
Intra-Module Isolation, Field-to-Logic |
3750 VDC |
|
EMS Protection |
|
ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal |
|
8 kV Air for Random Point |
|
EFT (IEC 61000-4-4) |
±4 kV, ±2 kV for the RS-485 Port |
|
Power |
|
Reverse Polarity Protection |
Yes |
|
Input Range |
10 ~ 30 VDC |
|
Consumption |
0.2 W |
|
Mechanical |
|
Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
|
Installation |
DIN-Rail or Wall Mounting |
|
Environment |
|
Operating Temperature |
-25 ~ +75°C |
|
Storage Temperature |
-40 ~ +85°C |
|
Humidity |
10 ~ 95% RH, Non-condensing |
I/O Specifications
|
Digital Input/Counter |
|
Channels |
14 |
|
Contact |
Wet |
|
Sink/Source (NPN/PNP) |
Sink/Source |
|
Wet Contact |
On Voltage Level |
+68 ~ +150 VDC |
|
Off Voltage Level |
+48 VDC Max. |
|
Dry Contact |
On Voltage Level |
- |
|
Off Voltage Level |
- |
|
Counters |
Max. Count |
65535 (16-bit) |
Max. Input
Frequency |
100 Hz |
|
Min. Pulse Width |
5 ms |
|
Input Impedance |
50 KΩ |
|
|
