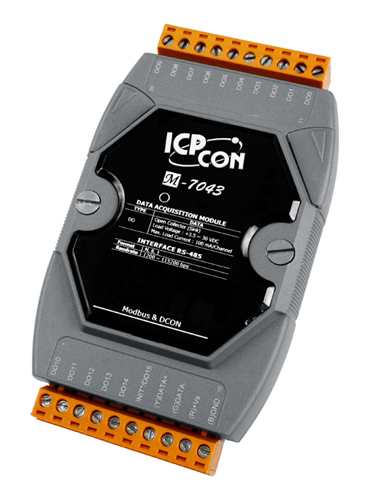

The M-7043 offers 16 digital output channels, each of which are non-isolated and support sink-type output using an open collector. There are also options to enable both power-on and safe values. They come with configurable power-on value settings and configurable safe value settings. They can be used with our free EZ Data Logger software for data logging and monitoring applications.
Digital Output
- Channels: 16 Digital Output
- LED indicated
- Digital output status
- Open collector to 30V max.
- Output current: 100mA per channel.
- Direct drive power relay module
Specifications
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ 30 VDC |
| Max. Load Current |
100 mA/Channel |
| Power-on Value |
Yes |
| Safe Value |
Yes |
| Communication |
| Interface |
RS-485 |
| Bias Resistor |
No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
| Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Baud Rate |
1200 to 115200 bps |
| Protocol |
Modbus RTU, DCON |
| Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator / Display |
| System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
| I/O LED Indicator |
Yes, 16 LED as Digital Output Indicator |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Voltage Range |
10~30VDC |
| Power Consumption |
0.4W |
| Mechanical |
| Dimensions (L x W x H) |
123 mm x 72 mm x 35 mm |
| Storage Temperature |
-40 to 85°C |
| Environment |
| Operating Temperature |
-25 to 75°C |
| Storage Temperature |
-40 to 85°C |
| Humidity |
5 to 95% RH, non-condensing |
|
