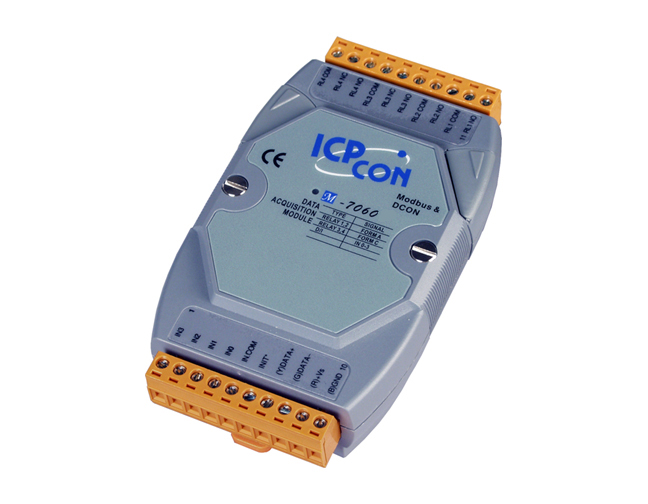

M-7060 - 4 Channel Relay Output & 4 Channel Isolated Digital Input Data Acquisition Module communicable over Modbus RTU and RS-4
by ICP DAS
|
|
|
|
4 Channel Relay Output & 4 Channel Isolated Digital Input Data Acquisition
Module communicable over Modbus RTU and RS-485, supports operating temperatures
from -25 to 75°C
|
|
|
The M-7000 series is a family of network data acquisition and control modules
that support Modbus RTU. They can be remotely controlled using a set of commands
called DCON protocol. With the Modbus RTU protocol, it can easily communicate
with most popular SCADA/ HMI software and PLCs.
- Communication Via ModBus Protocol
- Channels: 4
- Four isolated channels with common power
- Relay output
- Two form relay
- SPST (N.O.)
- Two form relay
- SPDT
- Dry contact
- Din Rail Mount
|
Communication |
|
Interface |
RS-485 Modbus RTU, DCON |
|
Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) |
|
Baud Rate |
1200 ~ 115200 bps |
|
Protocol |
Modbus RTU, DCON |
|
Dual Watchdog |
Yes, Module (1.6 Seconds), Communication (Programmable over Modbus RTU) |
|
LED Indicators/Display |
|
System LED Indicator |
Yes, 1 LED as Power/Communication Indicator |
|
I/O LED Indicators |
- |
|
Yes, 8 LEDs as Digital Input/Relay Output Indicators |
|
7-Segment LED Display |
- |
|
Isolation |
|
Intra-Module Isolation, Field-to-Logic |
3750 VDC |
|
EMS Protection |
|
ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal |
|
±8 kV Air for Random Point |
|
EFT (IEC 61000-4-4) |
±2 kV for Power Line |
|
Surge (IEC 61000-4-5) |
- |
|
Protocol |
|
Support Modbus and DCON Protocol |
Yes |
|
Power |
|
Reverse Polarity Protection |
Yes |
|
Input Range |
10 ~ 30 VDC |
|
Consumption |
1 W |
|
Mechanical |
|
Dimensions ( W x L x H) |
72 mm x 123 mm x 35 mm |
|
Installation |
DIN-Rail or Wall Mounting |
|
Environment |
|
Operating Temperature |
-25 ~ +75°C |
|
Storage Temperature |
-40 ~ +85°C |
|
Humidity |
10 ~ 95% RH, Non-condensing |
I/O Specifications
|
Relay Output |
|
Channel |
4 (Form A x 2, Form C x 2) |
|
Relay Type |
Single Relay |
|
Form A Relay |
Contact Rating |
0.6 A @ 125 VAC
2 A @ 30 VDC |
|
Min. Contact Load |
10uA @ 10 mV |
|
Contact Material |
Gold-plated silver |
|
Operate Time |
3 ms |
|
Release Time |
2 ms |
|
Mechanical Endurance |
1 x 10^8 ops. |
|
Electrical Endurance |
5 x 10^5 ops. |
|
Form C Relay |
Contact Rating |
0.6 A @ 125 VAC
2 A @ 30 VDC |
|
Min. Contact Load |
10 uA @ 10 mV |
|
Contact Material |
Gold-plated silver |
|
Operate Material |
3 ms |
|
Release Time |
2 ms |
|
Mechanical Endurance |
1 x 10^8 ops. |
|
Eletrical Endurance |
5 x 10^5 ops. |
|
Surge Strength |
1500 VDC |
|
Power-on Value |
Yes |
|
Safe Value |
Yes |
|
Digital Input/Counter |
|
Channel |
4 |
|
Type |
Dry Contact |
0 |
|
Wet Contact |
Sink/source |
|
On Voltage Level |
+1 VDC Max. |
|
Off Voltage Level |
+4 ~ 30 VDC |
|
Counters |
Max Count |
65535 (16-bit) |
|
Max. Input Frequency |
100 Mhz |
|
Min. Pulse Width |
5 ms |
|
Input Impedance |
3 kΩ |
|
Overvoltage Protection |
+/-35 VDC |
|
|
