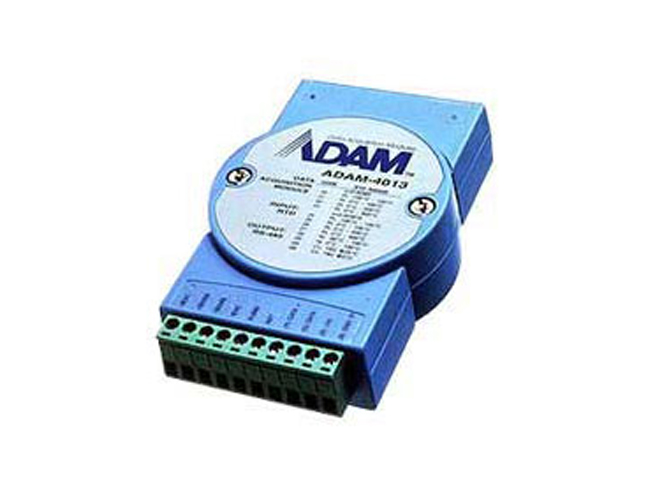

ADAM-4013-DE The ADAM-4000 series is a set of intelligent sensor-to-computer interface analog I/O modules containing a built-in microprocessor. They are remotely controlled through a simple set of commands issued in ASCII format and transmitted in RS-485 protocol.The 4000 series provide signal conditioning, isolation, ranging, A/D and D/A conversion, data comparison, and digital communication functions. Some modules provide digital I/O lines for controlling relays and TTL devices.Buy and compare our RS-485 I/O modules below. Click on each model number to view a photo and see the Details, Specs, Documentation, and Accessories tabs for further information.
General
- Power Consumption: 0.7 W @ 24 VDC
- Supported Protocols: ASCII command
- Connectors: 1 x plug-in terminal block (#14 ~ 22 AWG)
Analog Input
- Channels: 1
- Input Connections: 2 or 3-wire
- Input Impedance: 2 MΩ
- Input Type: Pt or Ni RTD
- RTD Types and Temperature Ranges IEC RTD 100 ohms:
- Pt -100°C to +100°C a = 0.00385 Pt 0°C to +100°C a = 0.00385 Pt 0°C to +200°C a = 0.00385 Pt 0°C to +600°C a = 0.00385
- JIS RTD 100 ohms:
- Pt -100°C to +100°C a = 0.003916 Pt 0°C to +100°C a = 0.003916 Pt 0°C to +200°C a = 0.003916 Pt 0°C to +600°C a = 0.003916
- Ni RTD:
- Ni -80°C to +100°C Ni 0°C to +100°C
- Accuracy: ±0.1% or better
- Span Drift: ±25 ppm/°C
- Zero Drift: ±3 µV/°C
- CMR @ 50/60 Hz: 150 dB
