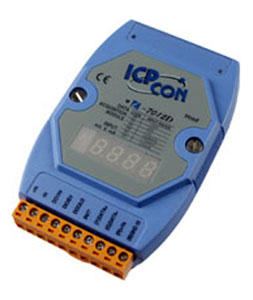

ICP DAS I-7012FD - High speed Analog input module with Display
by ICP DAS
|
|
|
|
Voltage Input, Current Input, & Analog Input Data Acquisition Module with display, with 1 Analog Input, 1 Digital input, 2 Digital Output, communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25 to 75°C.
|
|
|
I-7000 is a family of network data acquisition and control modules. They provide analog-to-digital, digital-to-analog, digital input/output, timer/counter and other functions. These modules can be remote controlled by a set of commands. The common features of analog input modules are given as follows :
- 3000VDC Isolated analog input.
- 24-bits sigma-delta ADC to provide excellent accuracy.
- Software calibration
The I-7012 is a single channel analog input module with high/low alarm function. The I-7012D is the I-7012 with a 4½ digit LED display. The I-7012F/12FD is a I-7012/12D with high speed analog input function. The I-7014D is I-7012D with Linear Mapping function and support +15V loop power for transmitter. The I-7017 is a 8-channel analog input module. The I-7017F is I-7017 with high speed analog input function. I-7012FD comes with FREE EZ Data Logger Software.
| Analog Input |
| Input Channels |
1 |
| Input Type |
±150mV, ±500mV, ±1V, ±5V, ±10V
±20mA (requires optional external 125 ohm resistor) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/ Second |
| Accuracy |
±0.05% or better |
| Zero Drift |
±20uV/°C |
| Span Drift |
25ppm/°C |
| Band Width |
5.24Hz |
| Common Mode Rejection |
86dB |
| Normal Mode Rejection |
100dB |
| Photo-Isolation |
3750 Vrms |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| Digital Input |
| Channels |
1 |
| Logic Level 0 |
+ 1V max |
| Logic Level 1 |
+ 3.5V to 30V |
| Max Input Frequency |
50Hz |
| Min.Pulse Width |
1 mS |
| Digital Output |
| Channels |
2 |
| Output Type |
Sink, Open Collector to 30V |
| Output Load |
30mA max per channel |
| Power dissipation |
300 mW |
| Interface |
| Interface |
RS-485 |
| Format |
N, 8, 1 |
| Buad Rate |
1200 ~ 115200bps |
| LED Display |
| 1 LED |
Power/ Communication indicator |
| I-7012D Versions |
4 1/2 digits |
| Power |
| Input |
+10 to +30 Vdc |
| Power Consumption |
1.3W (i-7012) / 1.9 W (i-7012D) |
| Environment |
| Operating temperature |
-25°C to 75°C |
| Storage temperature |
-40°C to 85°C |
| Humidity |
5% to 95%, non-condensing |
|
|
|
|
