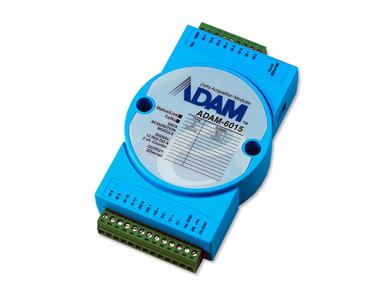

ADAM-6015-BE
The ADAM-6000 Ethernet-enabled data acquisition and control module works as an Ethernet I/O data processing center. This product is not only a standard I/O, but also an intelligent system designed with local control functions and a MODBUS/TCP protocol.
Buy and compare our Ethernet I/O modules below. Click on each model number to view a photo and see the Details, Specs, Documentation, and Accessories tabs for further information.
Channels: 7 differential
Effective Resolution: 16-bit
Input Type: Pt, Balco, and Ni RTD
RTD Type and Temperature Ranges:
- Pt 100 RTD Pt -50 to 150°C
- Pt 0 to 100°C PT 0 to 200°C
- Pt 0 to 400°C
- Pt -200 to 200°C IEC RTD 100 Ohms = 0.00385 JIS RTD 100 Ohms = 0.00392
- Pt 1000 RTD
- Pt -40 to 160°C
- Balco 500 RTD -30 to 120°C
- Ni 50 RTD Ni -80 to 100°C
- Ni 508 RTD
- Ni 0 to 100°C
Isolation Voltage: 2000VDC
Sampling Rate: 10 samples / sec.
Input Impedance: 10KΩ
Input Connections: 2 or 3 wire
Accuracy: ± 0.05% or better
Zero Drift: ± 3 µV/°C
Span Drift: ± 25 ppm/°C
CMR @ 50/60 Hz: 150 dB
NMR @ 50/60 Hz: 100 dB
Built-in Watchdog Timer
Individual Wire Burn-out Detect
Power Requirements: Unregulated 10 to 30 VDC (Protects against power reversal)
