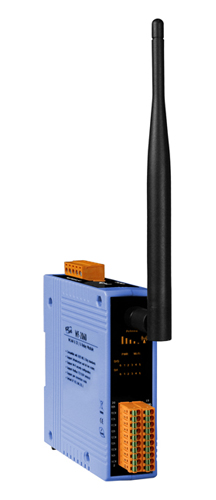

ICP DAS WF-2060 - Wi-Fi I/O Module with 6-channel Isolated Digital Input and 6-channel Relay Output
by ICP DAS
|
|
|
|
Wi-Fi I/O Module with 6-channel Isolated Digital Input and 6-channel Relay Output. Supports Modbus TCP protocol. Supports communication distance of up to 100 meters (328 feet) LOS. Supports operating temperatures of -25°C ~ +75°C (-13F ~ 167F).
|
|
|
The WF-2060 is a 6-channel isolated digital input with 32-bit counters and 6-channel relay output module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2060 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2060 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2060 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.
- Support Relay type digital outputs
- Support sink / source type digital inputs
- Compatible with IEEE 802.11b/g standards
- Support infrastructure and ad hoc modes for wireless networks
- Support WEP, WPA and WPA2 wireless encryption
- Support Modbus/TCP and UDP protocols
- Support pair connection mode
- Support AO/DO power on value & safe value Mechanism
- Built-in Watchdog
| Digital Input |
| Channels |
6 |
| Input Type |
Dry Contact: Source, Wet Contact: Sink / Source |
| Dry Contact Level |
Off Voltage Level: Open |
On Voltage Level: Close to GND |
| Wet Contact Level |
Off Voltage Level: +4V max. |
On Voltage Level: +10 V ~ +50 V |
| Counters
|
Channels |
8 |
| Max. Counts |
32-bit (4294967295) |
| Max. Input Frequency |
10K Hz |
| Photo-Isolation |
3750 VDC |
| Digital Output |
| Channels |
6 |
| Output Type |
Form A (SPST-NO) |
| Contact Rating (Resistive Load) |
5A 250VAC (47~63Hz) |
| 5A 30 VDC |
| Operate Time |
10ms max. |
| Release Time |
5ms max. |
| Insulation Resistance |
1,000MΩs at 500 VDC |
| Dielectric Strength
|
Between Open Contact |
1000VAC (1 min.) |
| Between Coil and Contacts |
3000VAC (1 min.) |
| Endurance
|
Mechanical |
20,000,000 times min. |
| Electrical |
100,000 times min. |
| Wi-Fi Interface |
| Antenna |
5 dBi (Omni-Directional) |
| Standard Supported |
IEEE 802.11b/g |
| Wireless Mode |
Infrastructure & Ad-hoc |
| Encryption |
WEP, WPA and WPA2 |
| Transmission Range |
100 meters (LOS) |
| Power |
| Input Voltage Range |
+10 ~ +30 VDC |
| Power Consumption |
1.6W |
| Mechanical |
| Installation |
DIN-Rail Mounting |
| Dimensions |
110mm x 90mm x 33mm (H x W x D) |
| Environmental |
| Operating Temperature |
-25 ℃ ~ +75 ℃ |
| Storage Temperature |
-30 ℃ ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
|
|
