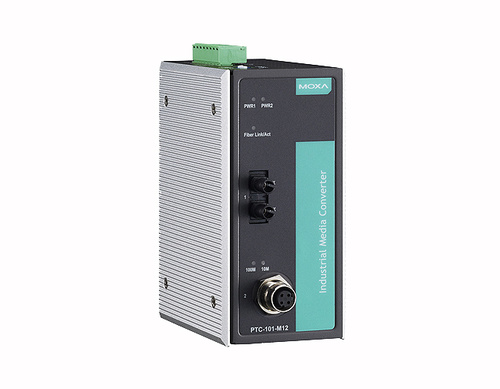

PTC-101-M12-S-ST-LV-CT-T - Industrial Media Converter, M12 connector, single mode, ST connector, 20-72 VDC, -40 to 85C by MOXA
|
|
|
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure alarm by relay output (LV model only)
- -40 to 85°C operating temperature range
- Redundant dual DC power inputs (LV model only)
- Integrated high-reliability power supply eliminates the need for external power transformer
- Compliant with EN 50121-4
- Complies with all EN 50155 mandatory test items
|
|
|
The PTC-101-M12-S-ST-LV-CT-T, Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
Ethernet Interface
Power Parameters
-
Input Current
150 mA @ 20 to 72 VDC
-
Input Voltage
20 to 72 VDC
-
Overload Current Protection
Supported
-
Power Consumption
150 mA @ 20 to 72 VDC
Physical Characteristics
-
Housing
Metal
-
Dimensions
152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
-
Weight
Packaged: 875 g (1.92 lb)
Product only: 690 g (1.52 lb)
-
Installation
DIN-rail mounting
-
Protection
-CT models: PCB conformal coating
Environmental Limits
-
Operating Temperature
-40 to 85°C (-40 to 185°F)
-
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
EMC
EN 55032/24
-
EMI
CISPR 32, FCC Part 15B Class A
-
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
-
Environmental Testing
IEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
-
Safety
EN 60950-1, UL 60950-1
-
Vibration
IEC 60068-2-6
MTBF
-
Time
1,211,613 hrs
-
Standards
MIL-HDBK-217F
|
|
