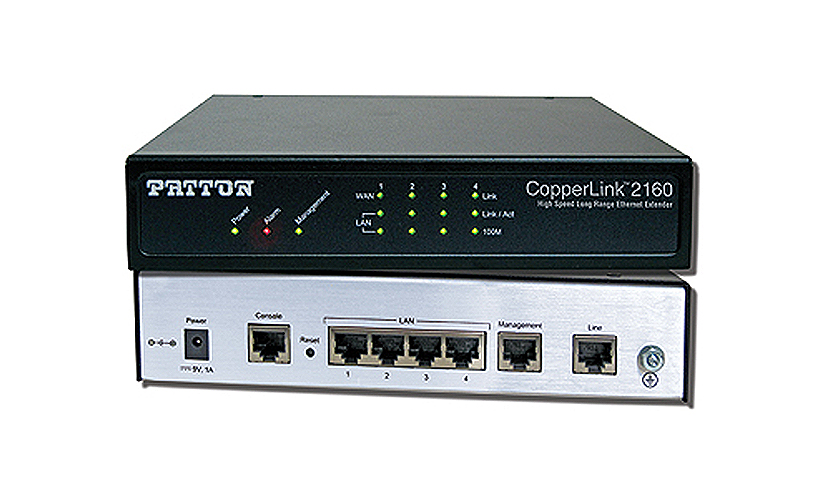

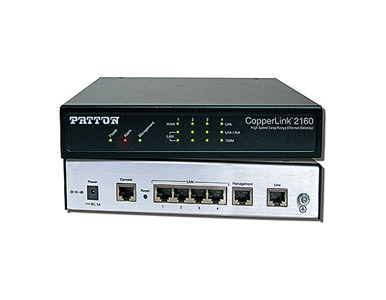

2161/EUI-2PK - CopperLink Multi Rate 22.8 Mbps 4-Wire Ethernet Extender Kit (1 Local Unit and 1 Remote Unit); 110-240 VAC by PATTON

2161/EUI-2PK - CopperLink Multi Rate 22.8 Mbps 4-Wire Ethernet Extender Kit (1 Local Unit and 1 Remote Unit); 110-240 VAC
by PATTON

Write a review Write a review
  • Get reliable broadband connectivity with  full-duplex symmetric rates and distances exceeding 4.5 miles (7,300m)
  • Make up to 4 network connections easily. Built in MDI-X auto cross over switches eliminates messy and confusing cable configurations.
  • Transparent LAN Bridging</strong>—Passes higher layer protocols and supports 802.1Q VLAN tagging.
  • Automatic Learning, Aging and Filtering</strong>—Only allows packets with addresses outside the LAN to be forwarded.
  • Ensure mission critical network connections are of top quality with advanced traffic management features.
  • Built-in console port makes setup a snap, you can also use the embedded HTTP/SNMP agent to remote manage the unit from anywhere in the world.



Mfg SKU # : 2161/EUI-2PK
List Price : $1,099.00
Our Price : $989.00
Stock :Call for Availability
Quantity :
The Patton Model 2161-EUI-2PK simplifies and provides cost effective network extension by utilizing pre-existing twisted pair infrastructure. LAN extension doesn’t have to be expensive or difficult. Patton’s Model 2160 series of auto-rate Ethernet Extenders open the door to low-cost and easy set-up LAN extension. The LAN Extenders are easy to use and take advantage of existing copper twisted-pair infrastructure to connect LANs at high speed and over long distances.

There are three models available in the 2160 series, including the flagship Model 2162 that utilizes 1 to 4 pair of voice grade wires enabling maximum transmission speeds of 22.8 Mbps at a distance of 1.6 miles (2.6km). Also available is the Model 2161 (4 wire)—11.4 at 1.6 miles (2.6 km), and the Model 2160—5.7 Mbps at 1.6 miles (2.6 km). Maximum distance achieved with all CopperLink 2160 models is 4.1 miles (6.6 km).

Whether connecting corporate LANs or remote offices, Patton Ethernet Extenders offer the best combination of speed and distance in the industry. Other LAN extenders operate at a single rate or are difficult to configure for LANs located at different distances, but the CopperLink Ethernet Extenders’ auto-rate adaptation feature ensures that users get the highest speed possible for the distances they are trying to reach. Patton Ethernet Extenders include MTU support of 1,792 bytes, and come with a built-in MDI-X switch, that simplifies connection to LANs or PCs since it works correctly with a straight-through cable or a cross-over cable. Set-up is easy, just connect the Ethernet port cable and the copper twisted-pair to the Extenders, then apply power!

Patton CopperLink Auto-rate Ethernet Extenders are the perfect fit for cost effective simple and efficient LAN extension!
CopperLink Connector: Shielded RJ-45
Modulation: TC-PAM 32; 16
Ethernet Connectors: 4 x 8-position shielded RJ-45 • Auto-sensing 10/100Base-TX with half or full-duplex operation
MTU Support: 1,792 bytes
LAN Protocols: 802.1d Transparent Bridging, 2K MAC address learning bridge
VLAN Support: IEEE 802.1q VLAN Tagging • Port Based VLAN, up to 4K VLANs • VLAN Stacking (Q-in-Q)
QoS Support: Rate limiting rule-based/port-based • Traffic classification based on port/802.1p/DSCP (Differentiated Services Code Point) • WRR (Weighted Round Robin)/SPQ (Strict Priority Queing) scheduling algorithm
Management Connector: Web: Shielded RJ-45 • Console: Shielded RJ-45
Management Interface: Web based GUI • CLI for local and console access; password protected • SNMP v1/v2 (RFC 1157/1901/1905) agent and MIB (RFC 1213/1493) • Software upgradeable via web-browser/TFTP
Front Panel Indicators: Power, Alarm, Diagnostic, WAN Link (x4), Ethernet Link (x4), Ethernet 100M (x4)
Power Supply: AC : Universal Input (UI)—90–240 VAC (50~60 Hz)
Compliance: FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC
Environment: Operating Temperature: 0 to 50° C; Storage Temperature: -40 to 85° C
Dimensions: 7.67L x 1.89W x 6.61D in. (195L x 48H x 168D mm)
Weight: 2.86 lbs (1.29 kg) without power supply
